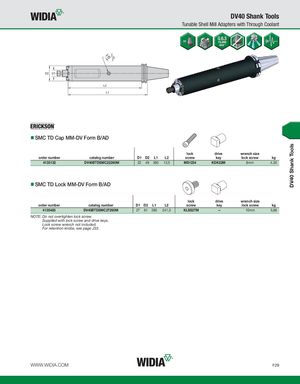

DV40 Shank Tools DV40 Shank Tools Tunable Shell Mill Adapters with Through Coolant D2 D1 L2 L1 SMC TD Cap MM-DV Form B/AD lock drive wrench size order number catalog number D1 D2 L1 L2 screw key lock screw kg 4135132 DV40BTDSMC22260M 22 49 260 13,5 MS1234 KDK22M 8mm 4,30 SMC TD Lock MM-DV Form B/AD lock drive wrench size order number catalog number D1 D2 L1 L2 screw key lock screw kg 4135483 DV40BTDSMC27260M 27 61 260 241,0 KLSS27M — 10mm 5,88 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Lock screw wrench not included. For retention knobs, see page J33. WWW.WIDIA.COM F29
