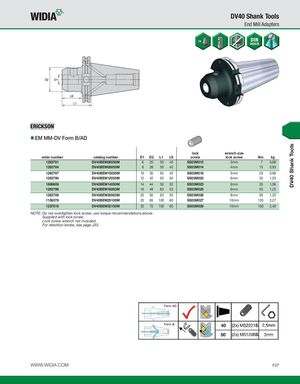

EM MM-DV Form B/AD
| order number | catalog number | D1 | D2 | L1 | L9 | lock screw | wrench size lock screw | Nm | kg |
| 1263781 | DV40BEM06050M | 6 | 25 | 50 | 40 | SS03M012 | 3mm | 7 | 0,88 |
| 1263784 | DV40BEM08050M | 8 | 28 | 50 | 40 | SS03M014 | 4mm | 15 | 0,93 |
| 1263787 | DV40BEM10050M | 10 | 35 | 50 | 45 | SS03M018 | 5mm | 25 | 0,96 |
| 1263790 | DV40BEM12050M | 12 | 42 | 50 | 50 | SS03M023 | 6mm | 35 | 1,03 |
| 1886608 | DV40BEM14050M | 14 | 44 | 50 | 50 | SS03M023 | 6mm | 35 | 1,06 |
| 1263796 | DV40BEM16063M | 16 | 48 | 63 | 53 | SS03M025 | 6mm | 50 | 1,25 |
| 1263799 | DV40BEM20063M | 20 | 50 | 63 | 55 | SS03M026 | 8mm | 95 | 1,25 |
| 1156378 | DV40BEM25100M | 25 | 65 | 100 | 60 | SS03M027 | 10mm | 135 | 2,27 |
| 1237816 | DV40BEM32100M | 32 | 72 | 100 | 65 | SS03M029 | 10mm | 160 | 2,48 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33.
