system size

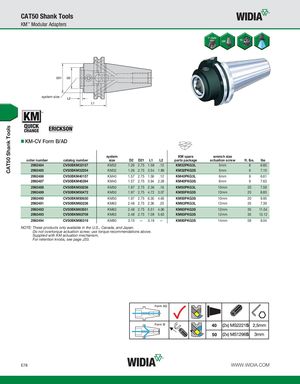

KM-CV Form B/AD
| order number | catalog number | system size | D2 | D21 | L1 | L2 | KM spare parts package | wrench size actuation screw | ft. lbs. | lbs |
| 2992484 | CV50BKM32157 | KM32 | 1.26 | 2.75 | 1.58 | .12 | KM32PKG3L | 5mm | 6 | 6.60 |
| 2992485 | CV50BKM32354 | KM32 | 1.26 | 2.75 | 3.54 | 1.89 | KM32PKG3S | 5mm | 6 | 7.10 |
| 2992486 | CV50BKM40157 | KM40 | 1.57 | 2.75 | 1.58 | .12 | KM40PKG3L | 6mm | 9 | 6.61 |
| 2992487 | CV50BKM40394 | KM40 | 1.57 | 2.75 | 3.94 | 2.28 | KM40PKG3S | 6mm | 9 | 7.63 |
| 2992488 | CV50BKM50236 | KM50 | 1.97 | 2.75 | 2.36 | .16 | KM50PKG3L | 10mm | 20 | 7.59 |
| 2992489 | CV50BKM50472 | KM50 | 1.97 | 2.75 | 4.72 | 3.07 | KM50PKG3S | 10mm | 20 | 8.83 |
| 2992490 | CV50BKM50630 | KM50 | 1.97 | 2.75 | 6.30 | 4.65 | KM50PKG3S | 10mm | 20 | 9.95 |
| 2992491 | CV50BKM63236 | KM63 | 2.48 | 2.75 | 2.36 | .20 | KM63PKG3L | 12mm | 35 | 7.39 |
| 2992492 | CV50BKM63551 | KM63 | 2.48 | 2.75 | 5.51 | 4.06 | KM63PKG3S | 12mm | 35 | 11.04 |
| 2992493 | CV50BKM63709 | KM63 | 2.48 | 2.75 | 7.09 | 5.63 | KM63PKG3S | 12mm | 35 | 13.12 |
| 2992494 | CV50BKM80319 | KM80 | 3.15 | — | 3.19 | — | KM80PKG3S | 14mm | 58 | 9.04 |
NOTE: These products only available in the U.S., Canada, and Japan. Do not overtorque actuation screw; use torque recommendations above. Supplied with KM actuation mechanism. For retention knobs, see page J33.
