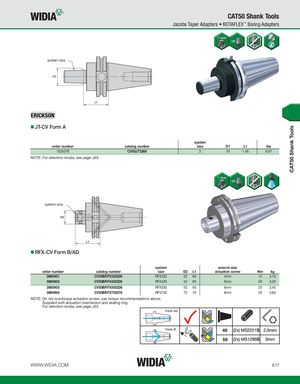

CAT50 Shank Tools CAT50 Shank Tools Jacobs Taper Adapters • ROTAFLEX™ Boring Adapters system size JT-CV Form A system order number catalog number size D1 L1 lbs 1026379 CV50JT3268 3 .81 1.46 6.97 NOTE: For retention knobs, see page J33. system size RFX-CV Form B/AD system wrench size order number catalog number size D2 L1 actuation screw Nm kg 3860901 CV50BRFX320236 RFX320 32 60 4mm 12 3,10 3860902 CV50BRFX420236 RFX420 42 60 5mm 20 3,20 3860903 CV50BRFX550236 RFX550 55 60 6mm 25 3,40 3860904 CV50BRFX720276 RFX720 72 70 6mm 25 3,60 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. For retention knobs, see page J33. WWW.WIDIA.COM E77
