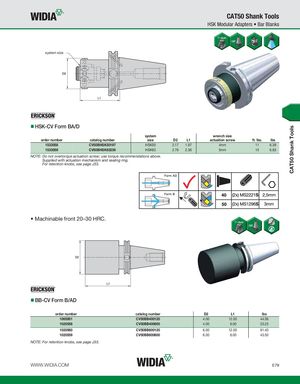

CAT50 Shank Tools CAT50 Shank Tools HSK Modular Adapters • Bar Blanks system size HSK-CV Form BA/D system wrench size order number catalog number size D2 L1 actuation screw ft. lbs. lbs 1533058 CV50BHSK50197 HSK50 2.17 1.97 4mm 11 6.39 1533059 CV50BHSK63236 HSK63 2.76 2.36 5mm 15 6.83 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. For retention knobs, see page J33. • Machinable front 20–30 HRC. BB-CV Form B/AD order number catalog number D2 L1 lbs 1065951 CV50BB400120 4.00 12.00 44.56 1020558 CV50BB400600 4.00 6.00 23.23 1020560 CV50BB600120 6.00 12.00 91.40 1020559 CV50BB600600 6.00 6.00 43.50 NOTE: For retention knobs, see page J33. WWW.WIDIA.COM E79
