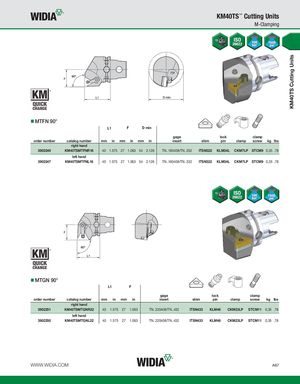

KM40TS Cutting Units KM40TS™ Cutting Units M-Clamping MTFN 90° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3902249 KM40TSMTFNR16 40 1.575 27 1.063 54 2.126 TN..160408/TN..332 ITSN322 KLM34L CKM7LP STCM9 0,35 .78 left hand 3902247 KM40TSMTFNL16 40 1.575 27 1.063 54 2.126 TN..160408/TN..332 ITSN322 KLM34L CKM7LP STCM9 0,35 .78 MTGN 90° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3902251 KM40TSMTGNR22 40 1.575 27 1.063 TN..220408/TN..432 ITSN433 KLM46 CKM23LP STCM11 0,35 .78 left hand 3902250 KM40TSMTGNL22 40 1.575 27 1.063 TN..220408/TN..432 ITSN433 KLM46 CKM23LP STCM11 0,35 .78 WWW.WIDIA.COM A67
