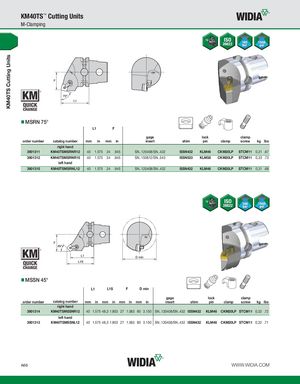

KM40TS Cutting Units KM40TS™ Cutting Units M-Clamping MSRN 75° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3901311 KM40TSMSRNR12 40 1.575 24 .945 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,31 .67 3901312 KM40TSMSRNR15 40 1.575 24 .945 SN..150612/SN..543 ISSN533 KLM58 CKM20LP STCM11 0,33 .73 left hand 3901310 KM40TSMSRNL12 40 1.575 24 .945 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,31 .68 MSSN 45° L1 L1S F D min gage lock clamp order number catalog number mm in mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3901314 KM40TSMSSNR12 40 1.575 48,3 1.903 27 1.063 80 3.150 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,32 .72 left hand 3901313 KM40TSMSSNL12 40 1.575 48,3 1.903 27 1.063 80 3.150 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,32 .71 A66 WWW.WIDIA.COM
