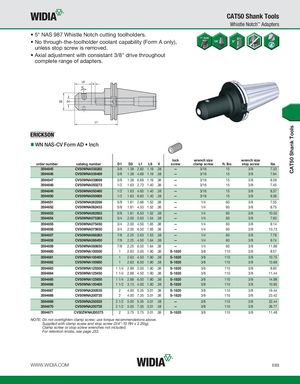

- 5° NAS 987 Whistle Notch cutting toolholders.
- No through-the-toolholder coolant capability (Form A only), unless stop screw is removed.
- Axial adjustment with consistant 3/8" drive throughout complete range of adapters.
WN NAS-CV Form AD Inch
| order number | catalog number | D1 | D2 | L1 | L9 | V | lock screw | wrench size clamp screw | ft. lbs. | wrench size stop screw | lbs |
| 3594645 | CV50WNA038282 | 3/8 | 1.38 | 2.82 | 1.19 | .38 | — | 3/16 | 15 | 3/8 | 7.33 |
| 3594646 | CV50WNA038469 | 3/8 | 1.38 | 4.69 | 1.19 | .38 | — | 3/16 | 15 | 3/8 | 7.94 |
| 3594647 | CV50WNA038669 | 3/8 | 1.38 | 6.69 | 1.19 | .38 | — | 3/16 | 15 | 3/8 | 8.59 |
| 3594648 | CV50WNA050273 | 1/2 | 1.63 | 2.73 | 1.40 | .38 | — | 3/16 | 15 | 3/8 | 7.45 |
| 3594649 | CV50WNA050460 | 1/2 | 1.63 | 4.60 | 1.40 | .38 | — | 3/16 | 15 | 3/8 | 8.37 |
| 3594650 | CV50WNA050660 | 1/2 | 1.63 | 6.60 | 1.40 | .38 | — | 3/16 | 15 | 3/8 | 9.36 |
| 3594651 | CV50WNA062266 | 5/8 | 1.81 | 2.66 | 1.52 | .38 | — | 1/4 | 60 | 3/8 | 7.55 |
| 3594652 | CV50WNA062453 | 5/8 | 1.81 | 4.53 | 1.52 | .38 | — | 1/4 | 60 | 3/8 | 8.75 |
| 3594653 | CV50WNA062653 | 5/8 | 1.81 | 6.53 | 1.52 | .38 | — | 1/4 | 60 | 3/8 | 10.02 |
| 3594654 | CV50WNA075263 | 3/4 | 2.00 | 2.63 | 1.54 | .38 | — | 1/4 | 60 | 3/8 | 7.60 |
| 3594655 | CV50WNA075450 | 3/4 | 2.00 | 4.50 | 1.65 | .38 | — | 1/4 | 60 | 3/8 | 9.14 |
| 3594656 | CV50WNA075650 | 3/4 | 2.00 | 6.50 | 1.65 | .38 | — | 1/4 | 60 | 3/8 | 10.73 |
| 3594657 | CV50WNA088263 | 7/8 | 2.25 | 2.63 | 1.53 | .38 | — | 1/4 | 60 | 3/8 | 7.78 |
| 3594658 | CV50WNA088450 | 7/8 | 2.25 | 4.50 | 1.64 | .38 | — | 1/4 | 60 | 3/8 | 9.74 |
| 3594659 | CV50WNA088650 | 7/8 | 2.25 | 6.50 | 1.64 | .38 | — | 1/4 | 60 | 3/8 | 11.88 |
| 3594660 | CV50WNA100300 | 1 | 2.63 | 3.00 | 1.90 | .38 | S-1820 | 3/8 | 110 | 3/8 | 8.57 |
| 3594661 | CV50WNA100450 | 1 | 2.63 | 4.50 | 1.90 | .38 | S-1820 | 3/8 | 110 | 3/8 | 10.75 |
| 3594662 | CV50WNA100650 | 1 | 2.63 | 6.50 | 1.90 | .38 | S-1820 | 3/8 | 110 | 3/8 | 13.68 |
| 3594663 | CV50WNA125300 | 1 1/4 | 2.88 | 3.00 | 1.90 | .38 | S-1820 | 3/8 | 110 | 3/8 | 8.80 |
| 3594664 | CV50WNA125450 | 1 1/4 | 2.88 | 4.50 | 1.90 | .38 | S-1820 | 3/8 | 110 | 3/8 | 11.44 |
| 3594665 | CV50WNA125650 | 1 1/4 | 2.88 | 6.50 | 1.90 | .38 | S-1820 | 3/8 | 110 | 3/8 | 14.98 |
| 3594666 | CV50WNA150400 | 1 1/2 | 3.13 | 4.00 | 1.90 | .38 | S-1820 | 3/8 | 110 | 3/8 | 10.95 |
| 3594667 | CV50WNA200535 | 2 | 4.00 | 5.35 | 3.01 | .38 | S-1820 | 3/8 | 110 | 3/8 | 16.44 |
| 3594668 | CV50WNA200735 | 2 | 4.00 | 7.35 | 3.01 | .38 | S-1820 | 3/8 | 110 | 3/8 | 23.42 |
| 3594669 | CV50WNA250535 | 2 1/2 | 5.00 | 5.35 | 3.01 | .38 | — | 3/8 | 110 | 3/8 | 22.44 |
| 3594670 | CV50WNA250735 | 2 1/2 | 5.00 | 7.35 | 3.01 | .38 | — | 3/8 | 110 | 3/8 | 26.77 |
| 3594671 | CV50ZWNA200375 | 2 | 3.75 | 3.75 | 3.01 | .38 | S-1820 | 3/8 | 110 | 3/8 | 11.48 |
NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw and stop screw (3/4"-10 RH x 2.25lg). Clamp screw or stop screw wrenches not included. For retention knobs, see page J33.
