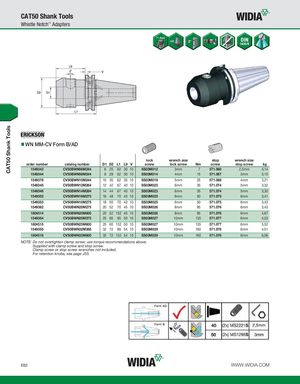

Каталог Widia инструментальная оснастка - страница 762
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
WN MM-CV Form B/AD
| order number | catalog number | D1 D2 | L1 L9 V | lock screw | wrench size lock screw | Nm | stop screw | wrench size stop screw | kg |
| 1549343 | CV50BWN06M244 | 6 25 | 62 30 10 | SS03M012 | 3mm | 7 | 571.060 | 2,5mm | 3,14 |
| 1549344 | CV50BWN08M244 | 8 28 | 62 30 10 | SS03M014 | 4mm | 15 | 571.067 | 3mm | 3,10 |
| 1549378 | CV50BWN10M244 | 10 35 | 62 35 10 | SS03M018 | 5mm | 25 | 571.068 | 4mm | 3,21 |
| 1549345 | CV50BWN12M264 | 12 42 | 67 40 10 | SS03M023 | 6mm | 35 | 571.074 | 5mm | 3,32 |
| 1549346 | CV50BWN14M264 | 14 44 | 67 40 10 | SS03M023 | 6mm | 35 | 571.074 | 5mm | 3,30 |
| 1549352 | CV50BWN16M275 | 16 48 | 70 43 10 | SS03M025 | 6mm | 50 | 571.075 | 6mm | 3,41 |
| 1549353 | CV50BWN18M275 | 18 50 | 70 43 10 | SS03M025 | 6mm | 50 | 571.075 | 6mm | 3,43 |
| 1549362 | CV50BWN20M275 | 20 52 | 70 45 10 | SS03M026 | 8mm | 95 | 571.076 | 6mm | 3,43 |
| 1804514 | CV50BWN20M600 | 20 52 | 152 45 10 | SS03M026 | 8mm | 95 | 571.076 | 6mm | 4,67 |
| 1549354 | CV50BWN25M375 | 25 65 | 95 50 10 | SS03M027 | 10mm | 135 | 571.077 | 6mm | 4,23 |
| 1804515 | CV50BWN25M600 | 25 65 | 152 50 10 | SS03M027 | 10mm | 135 | 571.077 | 6mm | 5,52 |
| 1549355 | CV50BWN32M388 | 32 72 | 99 54 10 | SS03M029 | 10mm | 160 | 571.076 | 6mm | 4,51 |
| 1804516 | CV50BWN32M600 | 32 72 | 152 54 10 | SS03M029 | 10mm | 160 | 571.076 | 6mm | 6,06 |
NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw and stop screw. Clamp screw or stop screw wrenches not included. For retention knobs, see page J33.
