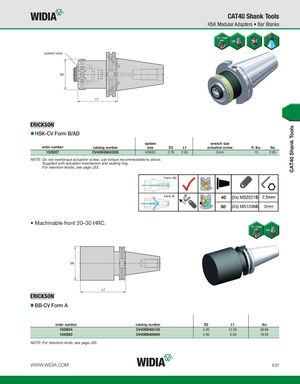

CAT40 Shank Tools CAT40 Shank Tools HSK Modular Adapters • Bar Blanks system size HSK-CV Form B/AD system wrench size order number catalog number size D2 L1 actuation screw ft. lbs. lbs 1533057 CV40BHSK63295 HSK63 2.76 2.95 5mm 15 2.65 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. For retention knobs, see page J33. • Machinable front 20–30 HRC. BB-CV Form A order number catalog number D2 L1 lbs 1020634 CV40BB400120 4.00 12.00 39.89 1020563 CV40BB400600 4.00 6.00 18.55 NOTE: For retention knob, see page J33. WWW.WIDIA.COM E37
