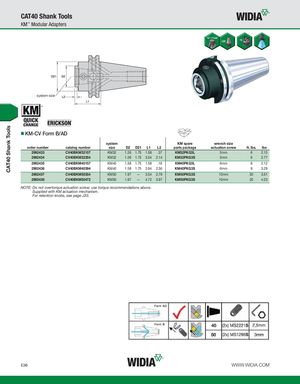

Каталог Widia инструментальная оснастка - страница 736
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
system size
KM-CV Form B/AD
| order number | catalog number | system size | D2 | D21 | L1 | L2 | KM spare parts package | wrench size actuation screw | ft. lbs. | lbs |
| 2992433 | CV40BKM32157 | KM32 | 1.26 | 1.75 | 1.58 | .37 | KM32PKG3L | 5mm | 6 | 2.15 |
| 2992434 | CV40BKM32354 | KM32 | 1.26 | 1.75 | 3.54 | 2.14 | KM32PKG3S | 5mm | 6 | 2.77 |
| 2992435 | CV40BKM40157 | KM40 | 1.58 | 1.75 | 1.58 | .18 | KM40PKG3L | 6mm | 9 | 2.12 |
| 2992436 | CV40BKM40394 | KM40 | 1.58 | 1.75 | 3.94 | 2.56 | KM40PKG3S | 6mm | 9 | 3.29 |
| 2992437 | CV40BKM50354 | KM50 | 1.97 | — | 3.54 | 2.79 | KM50PKG3S | 10mm | 20 | 3.51 |
| 2992438 | CV40BKM50472 | KM50 | 1.97 | — | 4.72 | 3.97 | KM50PKG3S | 10mm | 20 | 4.23 |
NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with KM actuation mechanism. For retention knobs, see page J33.
