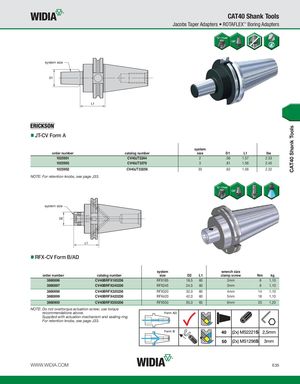

CAT40 Shank Tools CAT40 Shank Tools Jacobs Taper Adapters • ROTAFLEX™ Boring Adapters system size JT-CV Form A system order number catalog number size D1 L1 lbs 1025951 CV40JT2244 2 .56 1.57 2.33 1025953 CV40JT3278 3 .81 1.56 2.45 1025952 CV40JT33256 33 .62 1.56 2.32 NOTE: For retention knobs, see page J33. system size RFX-CV Form B/AD system wrench size order number catalog number size D2 L1 clamp screw Nm kg 3860896 CV40BRFX185236 RFX185 18,5 60 3mm 6 1,10 3860897 CV40BRFX245236 RFX245 24,5 60 3mm 8 1,10 3860898 CV40BRFX320236 RFX320 32,0 60 4mm 14 1,10 3860899 CV40BRFX420236 RFX420 42,0 60 5mm 16 1,10 3860900 CV40BRFX550256 RFX550 55,0 65 6mm 20 1,20 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. For retention knobs, see page J33. WWW.WIDIA.COM E35
