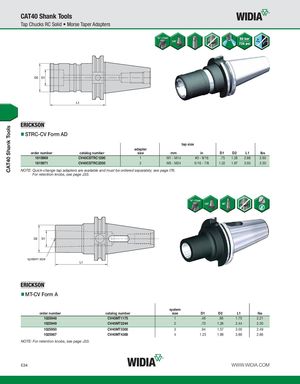

Каталог Widia инструментальная оснастка - страница 734

Предыдущая страница Следующая страница

Навигация

STRC-CV Form AD

tap size adapter

order numbercatalog numbersizemminD1D2L1lbs
1615969CV40CSTRC12901M1 - M14#0 - 9/16.751.262.882.60
1615971CV40CSTRC23502M5 - M245/16 - 7/81.221.973.503.50

NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. For retention knobs, see page J33.

system size

MT-CV Form A

order numbercatalog numbersystem sizeD1D2L1lbs
1025948CV40MT11751.48.981.752.21
1025949CV40MT22442.701.262.442.30
1025950CV40MT33003.941.573.002.49
1025987CV40MT438841.231.893.882.86

NOTE: For retention knobs, see page J33.
