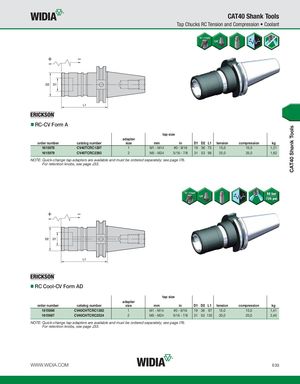

CAT40 Shank Tools CAT40 Shank Tools Tap Chucks RC Tension and Compression • Coolant RC-CV Form A tap size adapter order number catalog number size mm in D1 D2 L1 tension compression kg 1615978 CV40TCRC1297 1 M1 - M14 #0 - 9/16 19 36 75 15,0 15,0 1,21 1615979 CV40TCRC2393 2 M5 - M24 5/16 - 7/8 31 53 98 25,0 25,0 1,62 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. For retention knobs, see page J33. RC Cool-CV Form AD tap size adapter order number catalog number size mm in D1 D2 L1 tension compression kg 1615986 CV40CHTCRC1382 1 M1 - M14 #0 - 9/16 19 36 97 15,0 15,0 1,41 1615987 CV40CHTCRC2524 2 M5 - M24 5/16 - 7/8 31 53 133 20,0 20,0 2,40 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. For retention knobs, see page J33. WWW.WIDIA.COM E33
