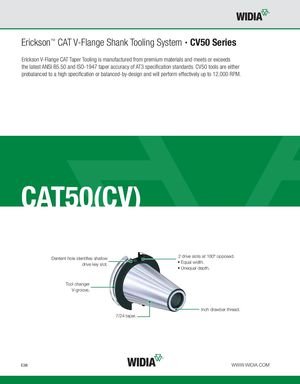

Erickson™ CAT V-Flange Shank Tooling System • CV50 Series Erickson V-Flange CAT Taper Tooling is manufactured from premium materials and meets or exceeds the latest ANSI B5.50 and ISO-1947 taper accuracy of AT3 specification standards. CV50 tools are either prebalanced to a high specification or balanced-by-design and will perform effectively up to 12,000 RPM. CAT50(CV) Dentent hole identifies shallow 2 drive slots at 180º opposed. drive key slot. • Equal width. • Unequal depth. Tool changer V-groove. Inch drawbar thread. 7/24 taper. E38 WWW.WIDIA.COM
