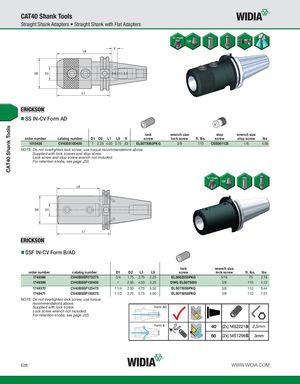

Straight Shank Adapters • Straight Shank with Flat Adapters
SS IN-CV Form AD
lock wrench size stop wrench size
| order number | catalog number | D1 D2 | L1 | L9 | V | screw | lock screw | ft. lbs. | screw | stop screw | lbs | |||||
| 1018426 | CV40SS100400 | 1 2.25 4.00 3.75 .63 | ELS075062PKG | 3/8 | 110 | CSS081125 | 1/8 | 4.06 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screws and stop screw. Lock screw and stop screw wrench not included. For retention knobs, see page J33.
SSF IN-CV Form B/AD
| order number | catalog number | D1 | D2 | L1 | L9 | lock screw | wrench size lock screw | ft. lbs. | lbs |
| 1749368 | CV40BSSF075275 | 3/4 | 1.75 | 2.75 | 2.25 | ELS062050PKG | 5/16 | 70 | 2.78 |
| 1749369 | CV40BSSF100450 | 1 | 2.00 | 4.50 | 3.25 | DWG ELS075050 | 3/8 | 110 | 4.12 |
| 1749370 | CV40BSSF125475 | 1 1/4 | 2.50 | 4.75 | 3.50 | ELS075056PKG | 3/8 | 110 | 5.44 |
| 1749471 | CV40BSSF150575 | 1 1/2 | 2.75 | 5.75 | 4.00 | ELS075056PKG | 3/8 | 110 | 7.01 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33.
