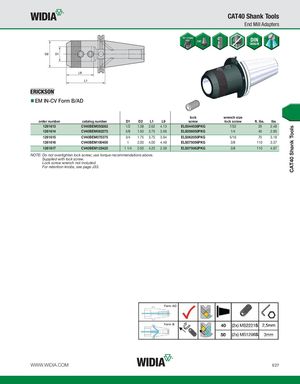

CAT40 Shank Tools CAT40 Shank Tools End Mill Adapters EM IN-CV Form B/AD lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw ft. lbs. lbs 1261613 CV40BEM050262 1/2 1.38 2.62 4.13 ELS044038PKG 7/32 20 2.48 1261614 CV40BEM062375 5/8 1.50 3.75 3.56 ELS056050PKG 1/4 40 2.95 1261615 CV40BEM075375 3/4 1.75 3.75 3.94 ELS062050PKG 5/16 70 3.18 1261616 CV40BEM100400 1 2.00 4.00 4.49 ELS075056PKG 3/8 110 3.37 1261617 CV40BEM125425 1 1/4 2.50 4.25 2.39 ELS075062PKG 3/8 110 4.97 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33. WWW.WIDIA.COM E27
