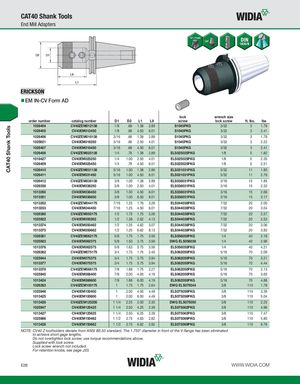

Каталог Widia инструментальная оснастка - страница 726
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
EM IN-CV Form AD
| order number | catalog number | D1 | D2 | L1 | L9 | lock screw | wrench size lock screw | ft. lbs. | lbs |
| 1026404 | CV40ZEM012138 | 1/8 | .69 | 1.38 | 2.89 | S1045PKG | 3/32 | 3 | 1.79 |
| 1026405 | CV40EM012450 | 1/8 | .69 | 4.50 | 6.01 | S1045PKG | 3/32 | 3 | 2.41 |
| 1026406 | CV40ZEM018138 | 3/16 | .69 | 1.38 | 2.89 | S1045PKG | 3/32 | 3 | 1.79 |
| 1025921 | CV40EM018250 | 3/16 | .69 | 2.50 | 4.01 | S1045PKG | 3/32 | 3 | 2.22 |
| 1026407 | CV40EM018450 | 3/16 | .69 | 4.50 | 6.01 | S1045PKG | 3/32 | 3 | 2.41 |
| 1026408 | CV40ZEM025138 | 1/4 | .78 | 1.38 | 2.89 | ELS025025PKG | 1/8 | 5 | 1.82 |
| 1018427 | CV40EM025250 | 1/4 | 1.00 | 2.50 | 4.01 | ELS025025PKG | 1/8 | 5 | 2.35 |
| 1026409 | CV40EM025450 | 1/4 | .78 | 4.50 | 6.01 | ELS025025PKG | 1/8 | 5 | 2.51 |
| 1026410 | CV40ZEM031138 | 5/16 | 1.00 | 1.38 | 2.89 | ELS031031PKG | 5/32 | 11 | 1.85 |
| 1026411 | CV40EM031450 | 5/16 | 1.00 | 4.50 | 6.01 | ELS031031PKG | 5/32 | 11 | 2.76 |
| 1026412 | CV40ZEM038138 | 3/8 | 1.00 | 1.38 | 2.89 | ELS038031PKG | 3/16 | 15 | 1.85 |
| 1026338 | CV40EM038250 | 3/8 | 1.00 | 2.50 | 4.01 | ELS038031PKG | 3/16 | 15 | 2.32 |
| 1013350 | CV40EM038450 | 3/8 | 1.00 | 4.50 | 6.01 | ELS038031PKG | 3/16 | 15 | 2.69 |
| 1013351 | CV40EM038650 | 3/8 | 1.00 | 6.50 | 8.01 | ELS038031PKG | 3/16 | 15 | 3.17 |
| 1013352 | CV40ZEM044175 | 7/16 | 1.25 | 1.76 | 3.26 | ELS044038PKG | 7/32 | 20 | 2.00 |
| 1013353 | CV40EM044450 | 7/16 | 1.25 | 4.50 | 6.01 | ELS044038PKG | 7/32 | 20 | 3.04 |
| 1026380 | CV40ZEM050175 | 1/2 | 1.75 | 1.75 | 3.26 | ELS044038PKG | 7/32 | 20 | 2.27 |
| 1025922 | CV40EM050262 | 1/2 | 1.38 | 2.62 | 4.13 | ELS044038PKG | 7/32 | 20 | 2.52 |
| 1013374 | CV40EM050462 | 1/2 | 1.25 | 4.62 | 3.07 | ELS044038PKG | 7/32 | 20 | 3.06 |
| 1013375 | CV40EM050662 | 1/2 | 1.25 | 6.62 | 8.13 | ELS044038PKG | 7/32 | 20 | 3.83 |
| 1026381 | CV40ZEM062175 | 5/8 | 1.75 | 1.75 | 3.56 | ELS056050PKG | 1/4 | 40 | 2.19 |
| 1025923 | CV40EM062375 | 5/8 | 1.50 | 3.75 | 3.56 | DWG ELS056038 | 1/4 | 40 | 2.96 |
| 1013376 | CV40EM062575 | 5/8 | 1.63 | 5.75 | 3.56 | ELS056050PKG | 1/4 | 40 | 4.21 |
| 1026382 | CV40ZEM075175 | 3/4 | 1.75 | 1.75 | 2.40 | ELS062050PKG | 5/16 | 70 | 2.09 |
| 1025944 | CV40EM075375 | 3/4 | 1.75 | 3.75 | 3.94 | ELS062050PKG | 5/16 | 70 | 3.21 |
| 1013377 | CV40EM075575 | 3/4 | 1.75 | 5.75 | 3.94 | ELS062050PKG | 5/16 | 70 | 4.44 |
| 1013378 | CV40ZEM088175 | 7/8 | 1.88 | 1.75 | 2.27 | ELS062050PKG | 5/16 | 70 | 2.13 |
| 1025945 | CV40EM088400 | 7/8 | 2.00 | 4.00 | 4.19 | ELS062050PKG | 5/16 | 70 | 3.65 |
| 1013424 | CV40EM088600 | 7/8 | 1.88 | 6.00 | 4.19 | ELS062050PKG | 5/16 | 70 | 4.86 |
| 1026383 | CV40ZEM100175 | 1 | 1.75 | 1.75 | 2.64 | DWG ELS075044 | 3/8 | 110 | 1.78 |
| 1025946 | CV40EM100400 | 1 | 2.00 | 4.00 | 4.49 | ELS075056PKG | 3/8 | 110 | 3.39 |
| 1013425 | CV40EM100600 | 1 | 2.00 | 6.00 | 4.49 | ELS075056PKG | 3/8 | 110 | 5.04 |
| 1013426 | CV40ZEM125200 | 1 1/4 | 2.25 | 2.00 | 2.35 | DWG ELS075050 | 3/8 | 110 | 2.25 |
| 1025947 | CV40EM125425 | 1 1/4 | 2.50 | 4.25 | 2.39 | ELS075062PKG | 3/8 | 110 | 4.96 |
| 1013427 | CV40EM125625 | 1 1/4 | 2.50 | 6.25 | 2.39 | ELS075062PKG | 3/8 | 110 | 7.47 |
| 1025986 | CV40EM150462 | 1 1/2 | 2.75 | 4.63 | 2.82 | ELS075069PKG | 3/8 | 110 | 5.80 |
| 1013428 | CV40EM150662 | 1 1/2 | 2.75 | 6.62 | 2.82 | ELS075069PKG | 3/8 | 110 | 8.76 |
NOTE: CV40 Z toolholders deviate from ANSI B5.50 standard. The 1.750" diameter in front of the V-flange has been eliminated to achieve short gage lengths. Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included.
