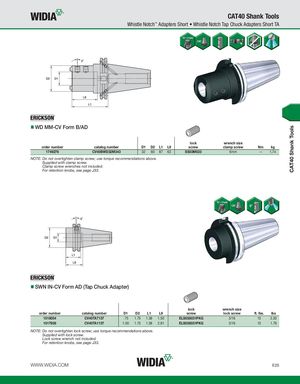

CAT40 Shank Tools CAT40 Shank Tools Whistle Notch™ Adapters Short • Whistle Notch Tap Chuck Adapters Short TA WD MM-CV Form B/AD lock wrench size order number catalog number D1 D2 L1 L9 screw clamp screw Nm kg 1749276 CV40BWD32M343 32 60 87 63 SS03M023 6mm — 1,74 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrenches not included. For retention knobs, see page J33. SWN IN-CV Form AD (Tap Chuck Adapter) lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw ft. lbs. lbs 1018054 CV40TA7137 .75 1.75 1.38 1.50 ELS038031PKG 3/16 15 2.20 1017938 CV40TA1137 1.00 1.75 1.38 2.81 ELS038031PKG 3/16 15 1.79 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33. WWW.WIDIA.COM E25
