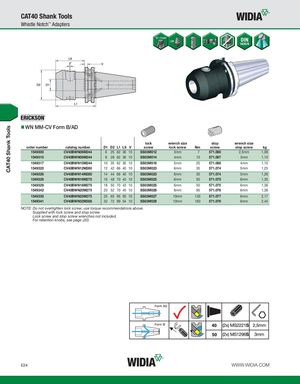

WN MM-CV Form B/AD
| order number | catalog number | D1 D2 L1 L9 V | lock screw | wrench size lock screw | Nm | stop screw | wrench size stop screw | kg |
| 1549300 | CV40BWN06M244 | 6 25 62 30 10 | SS03M012 | 3mm | 7 | 571.060 | 2,5mm | 1,09 |
| 1549315 | CV40BWN08M244 | 8 28 62 26 10 | SS03M014 | 4mm | 15 | 571.067 | 3mm | 1,10 |
| 1549317 | CV40BWN10M244 | 10 35 62 35 10 | SS03M018 | 5mm | 25 | 571.068 | 4mm | 1,15 |
| 1549320 | CV40BWN12M260 | 12 42 66 40 10 | SS03M023 | 6mm | 35 | 571.074 | 5mm | 1,25 |
| 1549326 | CV40BWN14M260 | 14 44 66 40 10 | SS03M023 | 6mm | 35 | 571.074 | 5mm | 1,26 |
| 1549328 | CV40BWN16M275 | 16 48 70 43 10 | SS03M025 | 6mm | 50 | 571.075 | 6mm | 1,35 |
| 1549329 | CV40BWN18M275 | 18 50 70 43 10 | SS03M025 | 6mm | 50 | 571.075 | 6mm | 1,36 |
| 1549342 | CV40BWN20M275 | 20 52 70 45 10 | SS03M026 | 8mm | 95 | 571.076 | 6mm | 1,38 |
| 1549330 | CV40BWN25M375 | 25 65 95 50 10 | SS03M027 | 10mm | 135 | 571.077 | 6mm | 2,17 |
| 1549341 | CV40BWN32M388 | 32 72 99 54 10 | SS03M029 | 10mm | 160 | 571.076 | 6mm | 2,45 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw and stop screw wrenches not included. For retention knobs, see page J33.
