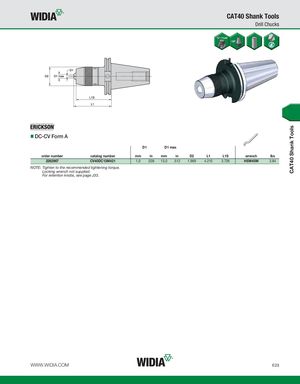

CAT40 Shank Tools CAT40 Shank Tools Drill Chucks DC-CV Form A D1 D1 max order number catalog number mm in mm in D2 L1 L1S wrench lbs 2262967 CV40DC13M421 1,0 .039 13,0 .512 1.969 4.210 3.726 HSW45M 3.84 NOTE: Tighten to the recommended tightening torque. Locking wrench not supplied. For retention knobs, see page J33. WWW.WIDIA.COM E23
