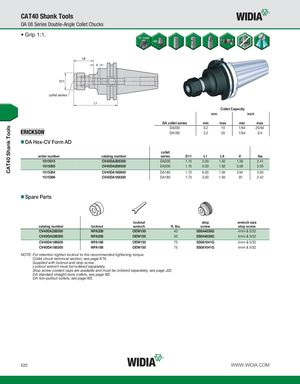

- Grip 1:1.
collet series
Collet Capacity mm inch
| DA collet series | min | max | min | max | |
| DA200 | 0,2 | 10 | 1/64 | 25/64 | |
| DA180 | 2,2 | 20 | 1/64 | 3/4 |
DA Hex-CV Form AD
| order number | catalog number | collet series | D11 | L1 | L9 | V | lbs |
| 1015515 | CV40DA208300 | DA200 | 1.15 | 3.00 | 1.62 | 1.38 | 2.41 |
| 1015305 | CV40DA208500 | DA200 | 1.15 | 5.00 | 1.62 | 3.38 | 3.05 |
| 1015304 | CV40DA188600 | DA180 | 1.73 | 6.00 | 1.94 | 3.94 | 3.60 |
| 1015596 | CV40DA188300 | DA180 | 1.73 | 3.00 | 1.94 | .81 | 2.42 |
Spare Parts
| catalog number | locknut | locknut wrench | ft. lbs. | stop screw | wrench size stop screw |
| CV40DA208500 | NPA208 | OEW100 | 40 | SS044038G | 4mm & 5/32 |
| CV40DA208300 | NPA208 | OEW100 | 40 | SS044038G | 4mm & 5/32 |
| CV40DA188600 | NPA188 | OEW150 | 75 | SS081041G | 4mm & 5/32 |
| CV40DA188300 | NPA188 | OEW150 | 75 | SS081041G | 4mm & 5/32 |
NOTE: For retention tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I62. DA non-pullout collets, see page I65.
