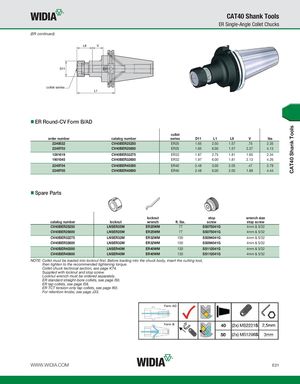

CAT40 Shank Tools CAT40 Shank Tools ER Single-Angle Collet Chucks (ER continued) collet series ER Round-CV Form B/AD collet order number catalog number series D11 L1 L9 V lbs 2249532 CV40BER25250 ER25 1.65 2.50 1.57 .75 2.35 2249703 CV40BER25600 ER25 1.65 6.00 1.57 2.37 4.13 1261619 CV40BER32275 ER32 1.97 2.75 1.81 1.65 2.34 1901045 CV40BER32600 ER32 1.97 6.00 1.81 2.13 4.26 2249704 CV40BER40300 ER40 2.48 3.00 2.05 .47 2.78 2249705 CV40BER40600 ER40 2.48 6.00 2.05 1.89 4.44 Spare Parts locknut stop wrench size catalog number locknut wrench ft. lbs. screw stop screw CV40BER25250 LNSER25M ER25WM 77 SS075041G 4mm & 5/32 CV40BER25600 LNSER25M ER25WM 77 SS075041G 4mm & 5/32 CV40BER32275 LNSER32M ER32WM 100 SS094041G 4mm & 5/32 CV40BER32600 LNSER32M ER32WM 100 SS094041G 4mm & 5/32 CV40BER40300 LNSER40M ER40WM 130 SS112041G 4mm & 5/32 CV40BER40600 LNSER40M ER40WM 130 SS112041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. For retention knobs, see page J33. WWW.WIDIA.COM E21
