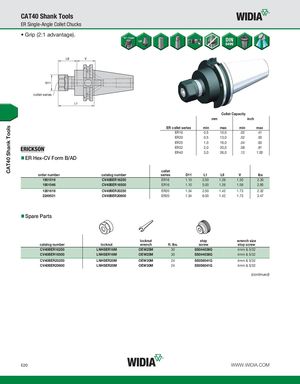

- Grip (2:1 advantage).
collet series
Collet Capacity mm inch
| ER collet series | min | max | min | max |
| ER16 | 0,5 | 10,0 | .02 | .41 |
| ER20 | 0,5 | 13,0 | .02 | .50 |
| ER25 | 1,0 | 16,0 | .04 | .63 |
| ER32 | 2,0 | 20,0 | .08 | .81 |
| ER40 | 3,0 | 26,0 | .12 | 1.00 |
ER Hex-CV Form B/AD
| order number | catalog number | collet series | D11 | L1 | L9 | V | lbs |
| 1901019 | CV40BER16250 | ER16 | 1.10 | 2.50 | 1.26 | 1.30 | 2.30 |
| 1901046 | CV40BER16500 | ER16 | 1.10 | 5.00 | 1.26 | 1.58 | 2.85 |
| 1261618 | CV40BER20250 | ER20 | 1.34 | 2.50 | 1.42 | 1.73 | 2.32 |
| 2249531 | CV40BER20600 | ER20 | 1.34 | 6.00 | 1.42 | 1.73 | 3.47 |
Spare Parts
| catalog number | locknut | locknut wrench | ft. lbs. | stop screw | wrench size stop screw |
| CV40BER16250 | LNHSER16M | OEW25M | 30 | SS044038G | 4mm & 5/32 |
| CV40BER16500 | LNHSER16M | OEW25M | 30 | SS044038G | 4mm & 5/32 |
| CV40BER20250 | LNHSER20M | OEW30M | 24 | SS056041G | 4mm & 5/32 |
| CV40BER20600 | LNHSER20M | OEW30M | 24 | SS056041G | 4mm & 5/32 |
(continued)
