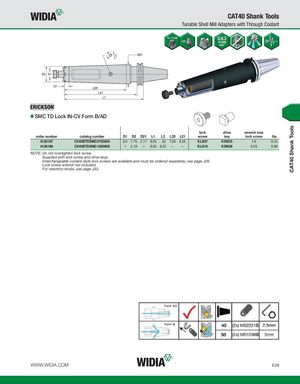

CAT40 Shank Tools CAT40 Shank Tools Tunable Shell Mill Adapters with Through Coolant SMC TD Lock IN-CV Form B/AD lock drive wrench size order number catalog number D1 D2 D21 L1 L2 L20 L21 screw key lock screw lbs 4136187 CV40BTDSMC0750900 3/4 1.75 2.17 9.00 .53 7.03 8.25 KLS07 KDK05 1/4 8.34 4136188 CV40BTDSMC1000900 1 2.19 — 9.00 8.25 — — KLS10 KDK06 5/16 9.99 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For retention knobs, see page J33. WWW.WIDIA.COM E29
