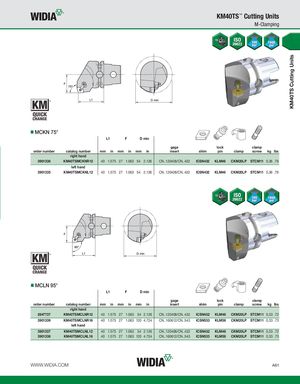

Каталог Widia инструментальная оснастка - страница 71
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
MCKN 75°
L1 F D min
gage lock clamp
| order number | catalog number | mm | in | mm | in | mm | in | insert | shim | pin | clamp | screw | kg lbs | |||
| right hand | ||||||||||||||||
| 3901336 | KM40TSMCKNR12 | 40 1.575 27 1.063 54 2.126 | CN..120408/CN..432 | ICSN432 | KLM46 | CKM20LP | STCM11 | 0,36 .79 | ||||||||
| left hand | ||||||||||||||||
| 3901335 | KM40TSMCKNL12 | 40 1.575 27 1.063 54 2.126 | CN..120408/CN..432 | ICSN432 | KLM46 | CKM20LP | STCM11 | 0,36 .79 |
MCLN 95°
L1 F D min
gage lock clamp
| order number | catalog number | mm | in mm in mm in | insert shim | pin | clamp | screw | kg lbs | |
| right hand | |||||||||
| 2647737 | KM40TSMCLNR12 | 40 1.575 27 1.063 54 2.126 | CN..120408/CN..432 | ICSN432 | KLM46 | CKM20LP | STCM11 | 0,33 .72 | |
| 3901339 | KM40TSMCLNR16 | 40 1.575 27 1.063 120 4.724 | CN..160612/CN..543 | ICSN533 | KLM58 | CKM20LP | STCM11 | 0,33 .73 | |
| left hand | |||||||||
| 3901337 | KM40TSMCLNL12 | 40 1.575 27 1.063 54 2.126 | CN..120408/CN..432 | ICSN432 | KLM46 | CKM20LP | STCM11 | 0,33 .72 | |
| 3901338 | KM40TSMCLNL16 | 40 1.575 27 1.063 120 4.724 | CN..160612/CN..543 | ICSN533 | KLM58 | CKM20LP | STCM11 | 0,33 .73 |
