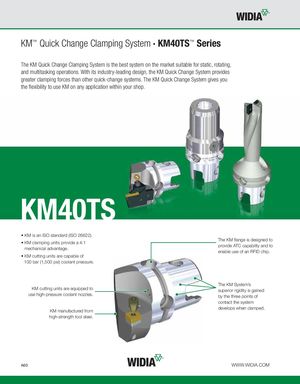

KM™ Quick Change Clamping System KM40TS™ Series

The KM Quick Change Clamping System is the best system on the market suitable for static, rotating,

and multitasking operations. With its industry-leading design, the KM Quick Change System provides

greater clamping forces than other quick-change systems. The KM Quick Change System gives you

the flexibility to use KM on any application within your shop.

KM40TS

• KM is an ISO standard (ISO 26622).
• KM clamping units provide a 4:1 mechanical advantage.
• KM cutting units are capable of 100 bar (1,500 psi) coolant pressure.

The KM flange is designed to provide ATC capability and to enable use of an RFID chip.

The KM System’s KM cutting units are equipped to superior rigidity is gained use high-pressure coolant nozzles. by the three points of contact the system develops when clamped. KM manufactured from high-strength tool steel.
