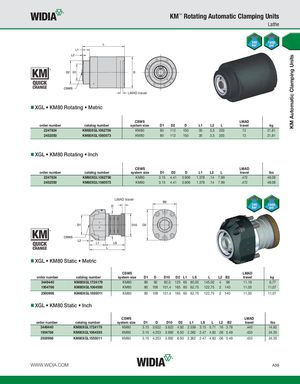

KM™ Rotating Automatic Clamping Units
LMAD travel
XGL • KM80 Rotating • Metric
| order number | catalog number | CSWS system size | D1 | D2 | D | L1 | L2 | L | LMAD travel | kg |
| 2247834 | KM80XGL1062756 | KM80 | 80 | 112 | 150 | 35 | 3,5 | 203 | 12 | 21,81 |
| 2452550 | KM80XGL1560573 | KM80 | 80 | 112 | 150 | 35 | 3,5 | 203 | 12 | 21,81 |
XGL • KM80 Rotating • Inch
| order number | catalog number | CSWS system size | D1 | D2 | D | L1 | L2 | L | LMAD travel | lbs |
| 2247834 | KM80XGL1062756 | KM80 | 3.15 | 4.41 | 5.906 | 1.378 | .14 | 7.99 | .472 | 48.08 |
| 2452550 | KM80XGL1560573 | KM80 | 3.15 | 4.41 | 5.906 | 1.378 | .14 | 7.99 | .472 | 48.08 |
LMAD travel
XGL • KM80 Static • Metric
| order number | catalog number | CSWS system size | D1 | D | D10 | D2 | L1 | LS | L | L2 B2 | LMAD travel | kg |
| 3449440 | KM80XGL1724179 | KM80 | 80 | 92 | 92,0 | 125 | 65 | 80,00 | 145,00 | 4 96 | 11,19 | 6,77 |
| 1954766 | KM80XGL1064593 | KM80 | 80 | 108 | 101,4 | 165 | 60 | 62,75 | 122,75 | 2 140 | 11,00 | 11,07 |
| 2500998 | KM80XGL1555011 | KM80 | 80 | 108 | 101,4 | 165 | 60 | 62,75 | 122,75 | 2 140 | 11,00 | 11,07 |
XGL • KM80 Static • Inch
| order number | catalog number | CSWS system size | D1 | D | D10 | D2 | L1 | LS | L | L2 | B2 | LMAD travel | lbs |
| 3449440 | KM80XGL1724179 | KM80 | 3.15 | 3.622 | 3.622 | 4.92 | 2.559 | 3.15 | 5.71 | .16 | 3.78 | .440 | 14.92 |
| 1954766 | KM80XGL1064593 | KM80 | 3.15 | 4.253 | 3.992 | 6.50 | 2.362 | 2.47 | 4.83 | .06 | 5.49 | .433 | 24.35 |
| 2500998 | KM80XGL1555011 | KM80 | 3.15 | 4.253 | 3.992 | 6.50 | 2.362 | 2.47 | 4.83 | .06 | 5.49 | .433 | 24.35 |
