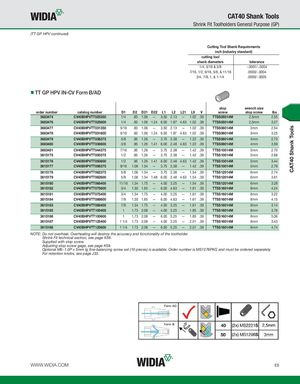

CAT40 Shank Tools CAT40 Shank Tools Shrink Fit Toolholders General Purpose (GP) (TT GP HPV continued) Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/4, 5/16 & 3/8 -.0001/-.0004 7/16, 1/2, 9/16, 5/8, & 11/16 .0000/-.0004 3/4, 7/8, 1, & 1-1/4 .0000/-.0005 TT GP HPV IN-CV Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw lbs 3683474 CV40BHPVTT025350 1/4 .83 1.06 — 3.50 2.13 — 1.02 .39 TTSS05014M 2,5mm 2.55 3683476 CV40BHPVTT025600 1/4 .83 1.06 1.24 6.00 1.97 4.63 1.02 .39 TTSS05014M 2,5mm 3.27 3683477 CV40BHPVTT031350 5/16 .83 1.06 — 3.50 2.13 — 1.02 .39 TTSS06014M 3mm 2.54 3683478 CV40BHPVTT031600 5/16 .83 1.06 1.24 6.00 1.97 4.63 1.02 .39 TTSS06014M 3mm 3.25 3683479 CV40BHPVTT038375 3/8 .95 1.26 — 3.75 2.38 — 1.22 .39 TTSS08014M 4mm 2.73 3683480 CV40BHPVTT038600 3/8 .95 1.26 1.41 6.00 2.48 4.63 1.22 .39 TTSS08014M 4mm 3.59 3683481 CV40BHPVTT044375 7/16 .95 1.26 — 3.75 2.38 — 1.42 .39 TTSS10014M 5mm 2.70 3615175 CV40BHPVTT050375 1/2 .95 1.26 — 3.75 2.38 — 1.42 .39 TTSS10014M 5mm 2.68 3615176 CV40BHPVTT050600 1/2 .95 1.26 1.41 6.00 2.48 4.63 1.42 .39 TTSS10014M 5mm 3.44 3615177 CV40BHPVTT056375 9/16 1.06 1.34 — 3.75 2.38 — 1.42 .39 TTSS10014M 5mm 2.79 3615178 CV40BHPVTT062375 5/8 1.06 1.34 — 3.75 2.38 — 1.54 .39 TTSS12014M 6mm 2.74 3615179 CV40BHPVTT062600 5/8 1.06 1.34 1.48 6.00 2.48 4.63 1.54 .39 TTSS12014M 6mm 3.61 3615180 CV40BHPVTT068400 11/16 1.34 1.75 — 4.00 3.25 — 1.54 .39 TTSS12014M 6mm 3.28 3615182 CV40BHPVTT075600 3/4 1.30 1.65 — 6.00 4.63 — 1.61 .39 TTSS16014M 8mm 4.24 3615181 CV40BHPVTT075400 3/4 1.34 1.75 — 4.00 3.25 — 1.61 .39 TTSS16014M 8mm 3.22 3615184 CV40BHPVTT088600 7/8 1.30 1.65 — 6.00 4.63 — 1.61 .39 TTSS16014M 8mm 4.15 3615183 CV40BHPVTT088400 7/8 1.34 1.75 — 4.00 3.25 — 1.61 .39 TTSS16014M 8mm 3.14 3615185 CV40BHPVTT100400 1 1.73 2.08 — 4.00 3.25 — 1.85 .39 TTSS16014M 8mm 3.76 3615186 CV40BHPVTT100600 1 1.73 2.08 — 6.00 5.25 — 1.85 .39 TTSS16014M 8mm 5.06 3615187 CV40BHPVTT125400 1 1/4 1.73 2.08 — 4.00 3.25 — 2.01 .39 TTSS16014M 8mm 3.43 3615188 CV40BHPVTT125600 1 1/4 1.73 2.08 — 6.00 5.25 — 2.01 .39 TTSS16014M 8mm 4.74 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Optional M6~1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. For retention knobs, see page J33. WWW.WIDIA.COM E5
