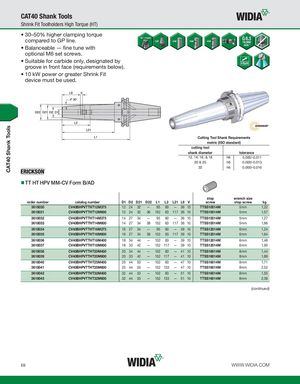

CAT40 Shank Tools CAT40 Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-CV Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3618030 CV40BHPVTTHT12M375 12 24 32 — 95 60 — 36 10 TTSS10014M 5mm 1,22 3618031 CV40BHPVTTHT12M600 12 24 32 36 152 63 117 36 10 TTSS10014M 5mm 1,57 3618032 CV40BHPVTTHT14M375 14 27 34 — 95 60 — 36 10 TTSS10014M 5mm 1,27 3618033 CV40BHPVTTHT14M600 14 27 34 38 152 63 117 36 10 TTSS10014M 5mm 1,66 3618034 CV40BHPVTTHT16M375 16 27 34 — 95 60 — 39 10 TTSS12014M 6mm 1,24 3618035 CV40BHPVTTHT16M600 16 27 34 38 152 63 117 39 10 TTSS12014M 6mm 1,64 3618036 CV40BHPVTTHT18M400 18 34 44 — 102 83 — 39 10 TTSS12014M 6mm 1,48 3618037 CV40BHPVTTHT18M600 18 33 42 — 152 117 — 39 10 TTSS12014M 6mm 1,95 3618038 CV40BHPVTTHT20M400 20 34 44 — 102 83 — 41 10 TTSS16014M 8mm 1,44 3618039 CV40BHPVTTHT20M600 20 33 42 — 152 117 — 41 10 TTSS16014M 8mm 1,89 3618040 CV40BHPVTTHT25M400 25 44 53 — 102 83 — 47 10 TTSS16014M 8mm 1,71 3618041 CV40BHPVTTHT25M600 25 44 53 — 152 133 — 47 10 TTSS16014M 8mm 2,52 3618042 CV40BHPVTTHT32M400 32 44 53 — 102 83 — 51 10 TTSS16014M 8mm 1,55 3618043 CV40BHPVTTHT32M600 32 44 53 — 152 133 — 51 10 TTSS16014M 8mm 2,36 (continued) E6 WWW.WIDIA.COM
