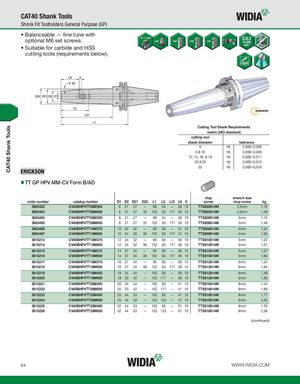

CAT40 Shank Tools CAT40 Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT GP HPV MM-CV Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3683482 CV40BHPVTT06M350 6 21 27 — 89 54 — 26 10 TTSS05014M 2,5mm 1,16 3683493 CV40BHPVTT06M600 6 21 27 32 152 50 117 26 10 TTSS05014M 2,5mm 1,48 3683494 CV40BHPVTT08M350 8 21 27 — 89 54 — 26 10 TTSS06014M 3mm 1,15 3683495 CV40BHPVTT08M600 8 21 27 32 152 50 117 26 10 TTSS06014M 3mm 1,48 3683496 CV40BHPVTT10M375 10 24 32 — 95 60 — 31 10 TTSS08014M 4mm 1,24 3683497 CV40BHPVTT10M600 10 24 32 36 152 63 117 31 10 TTSS08014M 4mm 1,63 3615213 CV40BHPVTT12M375 12 24 32 — 95 60 — 36 10 TTSS10014M 5mm 1,22 3615214 CV40BHPVTT12M600 12 24 32 36 152 63 117 36 10 TTSS10014M 5mm 1,57 3615215 CV40BHPVTT14M375 14 27 34 — 95 60 — 36 10 TTSS10014M 5mm 1,27 3615216 CV40BHPVTT14M600 14 27 34 38 152 63 117 36 10 TTSS10014M 5mm 1,66 3615217 CV40BHPVTT16M375 16 27 34 — 95 60 — 39 10 TTSS12014M 6mm 1,24 3615218 CV40BHPVTT16M600 16 27 34 38 152 63 117 39 10 TTSS12014M 6mm 1,64 3615219 CV40BHPVTT18M400 18 34 44 — 102 83 — 39 10 TTSS12014M 6mm 1,48 3615220 CV40BHPVTT18M600 18 33 42 — 152 117 — 39 10 TTSS12014M 6mm 1,95 3615221 CV40BHPVTT20M400 20 34 44 — 102 83 — 41 10 TTSS16014M 8mm 1,44 3615222 CV40BHPVTT20M600 20 33 42 — 152 117 — 41 10 TTSS16014M 8mm 1,89 3615223 CV40BHPVTT25M400 25 44 53 — 102 83 — 47 10 TTSS16014M 8mm 1,71 3615224 CV40BHPVTT25M600 25 44 53 — 152 133 — 47 10 TTSS16014M 8mm 2,52 3615225 CV40BHPVTT32M400 32 44 53 — 102 83 — 51 10 TTSS16014M 8mm 1,55 3615226 CV40BHPVTT32M600 32 44 53 — 152 133 — 51 10 TTSS16014M 8mm 2,36 (continued) E4 WWW.WIDIA.COM
