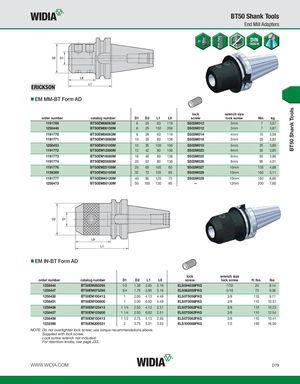

EM MM-BT Form AD
| order number | catalog number | D1 | D2 | L1 | L9 | lock screw | wrench size lock screw | Nm | kg |
| 1191769 | BT50EM06063M | 6 | 25 | 63 | 119 | SS03M012 | 3mm | 7 | 3,57 |
| 1258446 | BT50EM06150M | 6 | 25 | 150 | 206 | SS03M012 | 3mm | 7 | 3,87 |
| 1191770 | BT50EM08063M | 8 | 28 | 63 | 119 | SS03M014 | 4mm | 15 | 3,59 |
| 1191771 | BT50EM10080M | 10 | 35 | 80 | 136 | SS03M018 | 5mm | 25 | 3,82 |
| 1258453 | BT50EM10100M | 10 | 35 | 100 | 156 | SS03M018 | 5mm | 25 | 3,88 |
| 1191772 | BT50EM12080M | 12 | 42 | 80 | 136 | SS03M023 | 6mm | 35 | 3,85 |
| 1191773 | BT50EM16080M | 16 | 48 | 80 | 136 | SS03M025 | 6mm | 50 | 3,96 |
| 1191774 | BT50EM20080M | 20 | 52 | 80 | 136 | SS03M026 | 8mm | 95 | 4,01 |
| 1191776 | BT50EM25105M | 25 | 65 | 105 | 60 | SS03M027 | 10mm | 135 | 4,88 |
| 1156369 | BT50EM32105M | 32 | 72 | 105 | 65 | SS03M029 | 10mm | 160 | 5,11 |
| 1191777 | BT50EM40120M | 40 | 90 | 120 | 75 | SS03M029 | 10mm | 160 | 6,66 |
| 1258473 | BT50EM50130M | 50 | 100 | 130 | 85 | — | 12mm | 200 | 7,60 |
EM IN-BT Form AD
| order number | catalog number | D1 | D2 | L1 | L9 | lock screw | wrench size lock screw | ft. lbs. | lbs |
| 1258444 | BT50EM050295 | 1/2 | 1.38 | 2.95 | 5.16 | ELS044038PKG | 7/32 | 20 | 8.14 |
| 1258447 | BT50EM075295 | 3/4 | 1.75 | 2.95 | 5.16 | ELS062050PKG | 5/16 | 70 | 8.36 |
| 1258450 | BT50EM100413 | 1 | 2.00 | 4.13 | 4.49 | ELS075056PKG | 3/8 | 110 | 9.11 |
| 1258451 | BT50EM100600 | 1 | 2.00 | 6.00 | 4.49 | ELS075056PKG | 3/8 | 110 | 10.51 |
| 1258456 | BT50EM125413 | 1 1/4 | 2.50 | 4.13 | 2.51 | ELS075062PKG | 3/8 | 110 | 10.23 |
| 1258457 | BT50EM125600 | 1 1/4 | 2.50 | 6.00 | 2.51 | ELS075062PKG | 3/8 | 110 | 12.54 |
| 1258459 | BT50EM150413 | 1 1/2 | 2.75 | 4.13 | 2.93 | ELS075062PKG | 3/8 | 110 | 10.41 |
| 1232393 | BT50EM200531 | 2 | 3.75 | 5.31 | 3.53 | ELS100088PKG | 1/2 | 150 | 16.00 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33.
