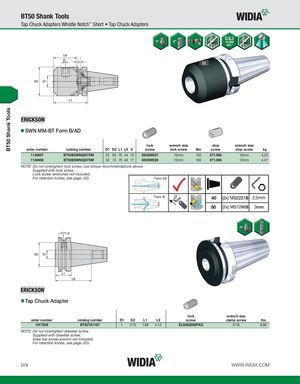

Tap Chuck Adapters Whistle Notch™ Short • Tap Chuck Adapters
SWN MM-BT Form B/AD
| lock | wrench size | stop | wrench size | |||||||||
| order number | catalog number | D1 D2 L1 L9 V | screw | lock screw | Nm | screw | stop screw | kg | ||||
| 1134607 | BT50BSWN25075M | 25 65 75 44 15 | SS03M027 | 10mm | 135 | 571.066 | 10mm | 4,23 | ||||
| 1134608 | BT50BSWN32075M | 32 72 75 46 17 | SS03M029 | 10mm | 160 | 571.066 | 10mm | 4,31 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrenches not included. For retention knobs, see page J33.
Tap Chuck Adapter
lock wrench size
| order number | catalog number | D1 | D2 | L1 | L9 | screw | clamp screw | lbs | |||
| 1017939 | BT50TA1187 | 1 | 2.75 | 1.88 | 4.13 | ELS062050PKG | 5/16 | 8.09 |
NOTE: Do not overtighten drawbar screw. Supplied with drawbar screw. Draw bar screw wrench not included. For retention knobs, see page J33.
