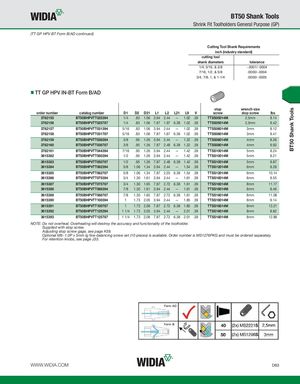

(TT GP HPV BT Form B/AD continued)
| Cutting Tool Shank Requirements inch (industry standard) |
| cutting tool shank diameters tolerance |
| 1/4, 5/16, & 3/8 -.0001/-.0004 |
| 7/16, 1/2, & 5/8 .0000/-.0004 |
| 3/4, 7/8, 1, & 1-1/4 .0000/-.0005 |
TT GP HPV IN-BT Form B/AD
| order number | catalog number | D1 | D2 | D21 | L1 | L2 | L21 | L9 | V | stop screw | wrench size stop screw | lbs |
| 3782155 | BT50BHPVTT025394 | 1/4 | .83 | 1.06 | 3.94 | 2.44 | — | 1.02 | .39 | TTSS05014M | 2,5mm | 8.14 |
| 3782156 | BT50BHPVTT025787 | 1/4 | .83 | 1.06 | 7.87 | 1.97 | 6.38 | 1.02 | .39 | TTSS05014M | 2,5mm | 9.42 |
| 3782157 | BT50BHPVTT031394 | 5/16 | .83 | 1.06 | 3.94 | 2.44 | — | 1.02 | .39 | TTSS06014M | 3mm | 8.12 |
| 3782158 | BT50BHPVTT031787 | 5/16 | .83 | 1.06 | 7.87 | 1.97 | 6.38 | 1.02 | .39 | TTSS06014M | 3mm | 9.41 |
| 3782159 | BT50BHPVTT038394 | 3/8 | .95 | 1.26 | 3.94 | 2.44 | — | 1.22 | .39 | TTSS08014M | 4mm | 8.26 |
| 3782160 | BT50BHPVTT038787 | 3/8 | .95 | 1.26 | 7.87 | 2.48 | 6.38 | 1.22 | .39 | TTSS08014M | 4mm | 9.92 |
| 3782161 | BT50BHPVTT044394 | 7/16 | .95 | 1.26 | 3.94 | 2.44 | — | 1.42 | .39 | TTSS10014M | 5mm | 8.24 |
| 3615382 | BT50BHPVTT050394 | 1/2 | .95 | 1.26 | 3.94 | 2.44 | — | 1.42 | .39 | TTSS10014M | 5mm | 8.21 |
| 3615383 | BT50BHPVTT050787 | 1/2 | .95 | 1.26 | 7.87 | 2.48 | 6.38 | 1.42 | .39 | TTSS10014M | 5mm | 9.87 |
| 3615384 | BT50BHPVTT062394 | 5/8 | 1.06 | 1.34 | 3.94 | 2.44 | — | 1.54 | .39 | TTSS12014M | 6mm | 8.28 |
| 3615385 | BT50BHPVTT062787 | 5/8 | 1.06 | 1.34 | 7.87 | 2.20 | 6.38 | 1.54 | .39 | TTSS12014M | 6mm | 10.14 |
| 3615386 | BT50BHPVTT075394 | 3/4 | 1.30 | 1.61 | 3.94 | 2.44 | — | 1.61 | .39 | TTSS16014M | 8mm | 8.55 |
| 3615387 | BT50BHPVTT075787 | 3/4 | 1.30 | 1.65 | 7.87 | 2.72 | 6.38 | 1.61 | .39 | TTSS16014M | 8mm | 11.17 |
| 3615388 | BT50BHPVTT088394 | 7/8 | 1.30 | 1.61 | 3.94 | 2.44 | — | 1.61 | .39 | TTSS16014M | 8mm | 8.46 |
| 3615389 | BT50BHPVTT088787 | 7/8 | 1.30 | 1.65 | 7.87 | 2.72 | 6.38 | 1.61 | .39 | TTSS16014M | 8mm | 11.08 |
| 3615390 | BT50BHPVTT100394 | 1 | 1.73 | 2.05 | 3.94 | 2.44 | — | 1.85 | .39 | TTSS16014M | 8mm | 9.14 |
| 3615391 | BT50BHPVTT100787 | 1 | 1.73 | 2.08 | 7.87 | 2.72 | 6.38 | 1.85 | .39 | TTSS16014M | 8mm | 13.21 |
| 3615392 | BT50BHPVTT125394 | 1 1/4 | 1.73 | 2.05 | 3.94 | 2.44 | — | 2.01 | .39 | TTSS16014M | 8mm | 8.82 |
| 3615393 | BT50BHPVTT125787 | 1 1/4 | 1.73 | 2.08 | 7.87 | 2.72 | 6.38 | 2.01 | .39 | TTSS16014M | 8mm | 12.88 |
NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Supplied with stop screw. Adjusting stop screw gage, see page K59. Optional M6~1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. For retention knobs, see page J33.
