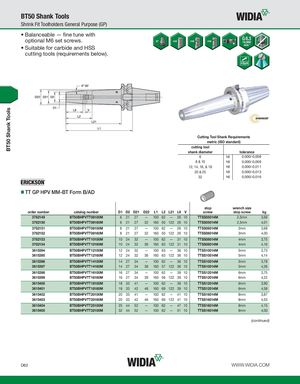

BT50 Shank Tools BT50 Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT GP HPV MM-BT Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3782149 BT50BHPVTT06100M 6 21 27 — 100 62 — 26 10 TTSS05014M 2,5mm 3,69 3782150 BT50BHPVTT06160M 6 21 27 32 160 50 122 26 10 TTSS05014M 2,5mm 4,01 3782151 BT50BHPVTT08100M 8 21 27 — 100 62 — 26 10 TTSS06014M 3mm 3,68 3782152 BT50BHPVTT08160M 8 21 27 32 160 50 122 26 10 TTSS06014M 3mm 4,00 3782153 BT50BHPVTT10100M 10 24 32 — 100 62 — 31 10 TTSS08014M 4mm 3,75 3782154 BT50BHPVTT10160M 10 24 32 36 160 63 122 31 10 TTSS08014M 4mm 4,16 3615394 BT50BHPVTT12100M 12 24 32 — 100 63 — 36 10 TTSS10014M 5mm 3,73 3615395 BT50BHPVTT12160M 12 24 32 36 160 63 122 36 10 TTSS10014M 5mm 4,14 3615396 BT50BHPVTT14100M 14 27 34 — 100 62 — 36 10 TTSS10014M 5mm 3,78 3615397 BT50BHPVTT14160M 14 27 34 38 160 57 122 36 10 TTSS10014M 5mm 4,26 3615398 BT50BHPVTT16100M 16 27 34 — 100 62 — 39 10 TTSS12014M 6mm 3,75 3615399 BT50BHPVTT16160M 16 27 34 39 160 56 122 39 10 TTSS12014M 6mm 4,22 3615400 BT50BHPVTT18100M 18 33 41 — 100 62 — 39 10 TTSS12014M 6mm 3,90 3615401 BT50BHPVTT18160M 18 33 42 46 160 69 122 39 10 TTSS12014M 6mm 4,58 3615402 BT50BHPVTT20100M 20 33 41 — 100 62 — 41 10 TTSS16014M 8mm 3,87 3615403 BT50BHPVTT20160M 20 33 42 46 160 69 122 41 10 TTSS16014M 8mm 4,53 3615404 BT50BHPVTT25100M 25 44 52 — 100 62 — 47 10 TTSS16014M 8mm 4,15 3615405 BT50BHPVTT32100M 32 44 52 — 100 62 — 51 10 TTSS16014M 8mm 4,00 (continued) D62 WWW.WIDIA.COM
