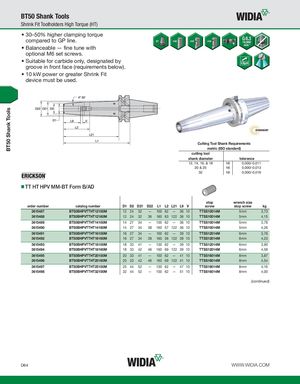

BT50 Shank Tools BT50 Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-BT Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3615487 BT50BHPVTTHT12100M 12 24 32 — 100 62 — 36 10 TTSS10014M 5mm 3,73 3615488 BT50BHPVTTHT12160M 12 24 32 36 160 63 122 36 10 TTSS10014M 5mm 4,15 3615489 BT50BHPVTTHT14100M 14 27 34 — 100 62 — 36 10 TTSS10014M 5mm 3,78 3615490 BT50BHPVTTHT14160M 14 27 34 38 160 57 122 36 10 TTSS10014M 5mm 4,26 3615491 BT50BHPVTTHT16100M 16 27 34 — 100 62 — 39 10 TTSS12014M 6mm 3,76 3615492 BT50BHPVTTHT16160M 16 27 34 39 160 56 122 39 10 TTSS12014M 6mm 4,23 3615493 BT50BHPVTTHT18100M 18 33 41 — 100 62 — 39 10 TTSS12014M 6mm 3,90 3615494 BT50BHPVTTHT18160M 18 33 42 46 160 69 122 39 10 TTSS12014M 6mm 4,58 3615495 BT50BHPVTTHT20100M 20 33 41 — 100 62 — 41 10 TTSS16014M 8mm 3,87 3615496 BT50BHPVTTHT20160M 20 33 42 46 160 69 122 41 10 TTSS16014M 8mm 4,54 3615497 BT50BHPVTTHT25100M 25 44 52 — 100 62 — 47 10 TTSS16014M 8mm 4,16 3615498 BT50BHPVTTHT32100M 32 44 52 — 100 62 — 51 10 TTSS16014M 8mm 4,00 (continued) D64 WWW.WIDIA.COM
