LMAD travel

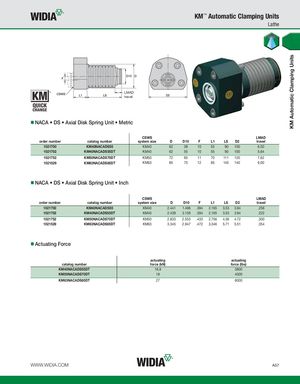

NACA • DS • Axial Disk Spring Unit • Metric
| order number | catalog number | CSWS system size | D | D10 | F | L1 | LS | D2 | LMAD travel |
| 1021700 | KM40NACADS55 | KM40 | 62 | 38 | 10 | 55 | 90 | 100 | 6,50 |
| 1021702 | KM40NACADS55DT | KM40 | 62 | 55 | 10 | 55 | 90 | 100 | 5,64 |
| 1021752 | KM50NACADS70DT | KM50 | 72 | 65 | 11 | 70 | 111 | 120 | 7,62 |
| 1021529 | KM63NACADS85DT | KM63 | 85 | 75 | 12 | 85 | 145 | 140 | 9,00 |
NACA • DS • Axial Disk Spring Unit • Inch
| order number | catalog number | CSWS system size | D | D10 | F | L1 | LS | D2 | LMAD travel |
| 1021700 | KM40NACADS55 | KM40 | 2.441 | 1.496 | .394 | 2.165 | 3.53 | 3.94 | .256 |
| 1021702 | KM40NACADS55DT | KM40 | 2.439 | 2.159 | .394 | 2.165 | 3.53 | 3.94 | .222 |
| 1021752 | KM50NACADS70DT | KM50 | 2.833 | 2.553 | .433 | 2.756 | 4.36 | 4.72 | .300 |
| 1021529 | KM63NACADS85DT | KM63 | 3.345 | 2.947 | .472 | 3.346 | 5.71 | 5.51 | .354 |
Actuating Force
| catalog number | actuating force(kN) | actuating force(lbs) |
| KM40NACADS55DT | 16,9 | 3800 |
| KM50NACADS70DT | 18 | 4000 |
| KM63NACADS85DT | 27 | 6000 |
