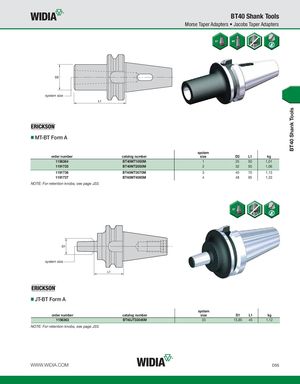

BT40 Shank Tools BT40 Shank Tools Morse Taper Adapters • Jacobs Taper Adapters system size MT-BT Form A system order number catalog number size D2 L1 kg 1156364 BT40MT1050M 1 25 50 1,01 1191735 BT40MT2050M 2 32 50 1,06 1191736 BT40MT3070M 3 40 70 1,13 1191737 BT40MT4095M 4 48 95 1,33 NOTE: For retention knobs; see page J33. system size JT-BT Form A system order number catalog number size D1 L1 kg 1156363 BT40JT33045M 33 15,85 45 1,12 NOTE: For retention knobs, see page J33. WWW.WIDIA.COM D55
