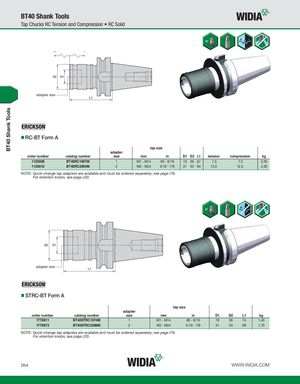

BT40 Shank Tools BT40 Shank Tools Tap Chucks RC Tension and Compression • RC Solid adapter size RC-BT Form A tap size adapter order number catalog number size mm in D1 D2 L1 tension compression kg 1125829 BT40RC1067M 1 M1 - M14 #0 - 9/16 19 36 67 7,5 7,5 2,00 1125812 BT40RC2094M 2 M5 - M24 5/16 - 7/8 31 53 94 12,5 12,5 2,20 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. For retention knobs, see page J33. adapter size STRC-BT Form A tap size adapter order number catalog number size mm in D1 D2 L1 kg 1778911 BT40STRC1074M 1 M1 - M14 #0 - 9/16 19 36 74 1,40 1778973 BT40STRC2089M 2 M5 - M24 5/16 - 7/8 31 53 89 1,70 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. For retention knobs, see page J33. D54 WWW.WIDIA.COM
