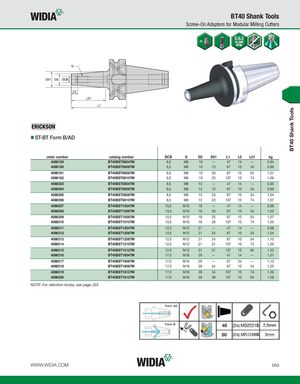

BT40 Shank Tools BT40 Shank Tools Screw-On Adapters for Modular Milling Cutters ST-BT Form B/AD order number catalog number DCB G D2 D21 L1 L2 L21 kg 4066159 BT40BST06047M 6,5 M6 10 — 47 14 — 0,94 4066160 BT40BST06067M 6,5 M6 10 13 67 10 34 0,96 4066161 BT40BST06087M 6,5 M6 10 20 87 10 54 1,01 4066162 BT40BST06107M 6,5 M6 10 23 107 10 74 1,06 4066303 BT40BST08047M 8,5 M8 13 — 47 14 — 0,95 4066304 BT40BST08067M 8,5 M8 13 15 67 10 34 0,99 4066305 BT40BST08087M 8,5 M8 13 23 87 10 54 1,04 4066306 BT40BST08107M 8,5 M8 13 23 107 10 74 1,07 4066307 BT40BST10047M 10,5 M10 18 — 47 14 — 0,98 4066308 BT40BST10067M 10,5 M10 18 20 67 10 34 1,02 4066309 BT40BST10087M 10,5 M10 18 25 87 10 54 1,07 4066310 BT40BST10107M 10,5 M10 18 28 107 10 74 1,20 4066311 BT40BST12047M 12,5 M12 21 — 47 14 — 0,98 4066312 BT40BST12067M 12,5 M12 21 24 67 10 34 1,04 4066313 BT40BST12087M 12,5 M12 21 24 87 10 54 1,10 4066314 BT40BST12107M 12,5 M12 21 31 107 10 74 1,25 4066315 BT40BST12127M 12,5 M12 21 31 127 10 94 1,32 4066316 BT40BST16047M 17,0 M16 29 — 47 14 — 1,01 4066317 BT40BST16067M 17,0 M16 29 — 67 34 — 1,10 4066318 BT40BST16087M 17,0 M16 29 34 87 10 54 1,25 4066319 BT40BST16107M 17,0 M16 29 34 107 10 74 1,36 4066320 BT40BST16127M 17,0 M16 29 39 127 10 94 1,58 NOTE: For retention knobs, see page J33. WWW.WIDIA.COM D53
