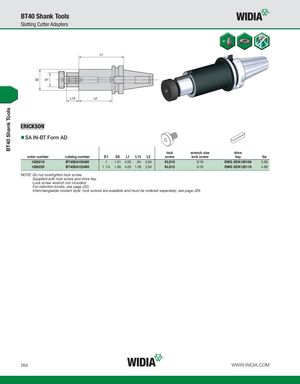

SA IN-BT Form AD
lock wrench size drive
| order number | catalog number | D1 | D2 | L1 | L13 | L2 | screw | lock screw | key | lbs | |||
| 1026219 | BT40SA100400 | 1 | 1.61 | 4.00 | .94 | 2.94 | KLS10 | 5/16 | DWG SDK100106 | 3.99 | |||
| 1026220 | BT40SA125400 | 1 1/4 | 1.86 | 4.00 | 1.09 | 2.94 | KLS12 | 5/16 | DWG SDK125119 | 4.86 |
NOTE: Do not overtighten lock screw. Supplied with lock screw and drive key. Lock screw wrench not included. For retention knobs, see page J33.
Interchangeable coolant style lock screws are available and must be ordered separately; see page J26.
