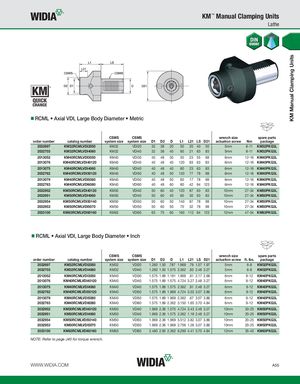

RCML • Axial VDI, Large Body Diameter • Metric
| order number | catalog number | CSWS system size | CSMS system size | D1 | D2 | D | L1 | L21 L | S | D21 | wrench size actuation screw | Nm | spare parts package |
| 2032697 | KM32RCMLVDI2050 | KM32 | VDI20 | 32 | 38 | 20 | 50 | 20 4 | 0 | 50 | 5mm | 8-11 | KM32PKG3L |
| 2032703 | KM32RCMLVDI4060 | KM32 | VDI40 | 32 | 38 | 40 | 60 | 21 6 | 3 | 83 | 5mm | 8-11 | KM32PKG3L |
| 2013052 | KM40RCMLVDI3050 | KM40 | VDI30 | 40 | 48 | 30 | 50 | 23 5 | 5 | 68 | 6mm | 12-16 | KM40PKG3L |
| 2013076 | KM40RCMLVDI40120 | KM40 | VDI40 | 40 | 48 | 40 | 120 | 83 6 | 3 | 83 | 6mm | 12-16 | KM40PKG3L |
| 2013075 | KM40RCMLVDI4060 | KM40 | VDI40 | 40 | 48 | 40 | 60 | 23 6 | 3 | 83 | 6mm | 12-16 | KM40PKG3L |
| 2032762 | KM40RCMLVDI50120 | KM40 | VDI50 | 40 | 48 | 50 | 120 | 77 7 | 8 | 98 | 6mm | 12-16 | KM40PKG3L |
| 2013079 | KM40RCMLVDI5060 | KM40 | VDI50 | 40 | 48 | 50 | 60 | 17 7 | 8 | 98 | 6mm | 12-16 | KM40PKG3L |
| 2032763 | KM40RCMLVDI6080 | KM40 | VDI60 | 40 | 48 | 60 | 80 | 42 9 | 4 | 123 | 6mm | 12-16 | KM40PKG3L |
| 2032952 | KM50RCMLVDI40120 | KM50 | VDI40 | 50 | 60 | 40 | 120 | 87 6 | 3 | 83 | 10mm | 27-34 | KM50PKG3L |
| 2032951 | KM50RCMLVDI4060 | KM50 | VDI40 | 50 | 60 | 40 | 60 | 30 6 | 3 | 83 | 10mm | 27-34 | KM50PKG3L |
| 2032954 | KM50RCMLVDI50140 | KM50 | VDI50 | 50 | 60 | 50 | 140 | 97 7 | 8 | 98 | 10mm | 27-34 | KM50PKG3L |
| 2032953 | KM50RCMLVDI5070 | KM50 | VDI50 | 50 | 60 | 50 | 70 | 32 7 | 8 | 98 | 10mm | 27-34 | KM50PKG3L |
| 2033100 | KM63RCMLVDI60160 | KM63 | VDI60 | 63 | 75 | 60 | 160 | 112 9 | 4 | 123 | 12mm | 47-54 | KM63PKG3L |
RCML • Axial VDI, Large Body Diameter • Inch
| order number | catalog number | CSWS system size | CSMS system size | D1 D2 D L1 L21 LS D21 | wrench size actuation screw | ft. lbs. | spare parts package |
| 2032697 | KM32RCMLVDI2050 | KM32 | VDI20 | 1.260 1.50 .787 1.969 .79 1.57 1.97 | 5mm | 6-8 | KM32PKG3L |
| 2032703 | KM32RCMLVDI4060 | KM32 | VDI40 | 1.260 1.50 1.575 2.362 .83 2.48 3.27 | 5mm | 6-8 | KM32PKG3L |
| 2013052 | KM40RCMLVDI3050 | KM40 | VDI30 | 1.575 1.89 1.181 1.969 .91 2.17 2.68 | 6mm | 9-12 | KM40PKG3L |
| 2013076 | KM40RCMLVDI40120 | KM40 | VDI40 | 1.575 1.89 1.575 4.724 3.27 2.48 3.27 | 6mm | 9-12 | KM40PKG3L |
| 2013075 | KM40RCMLVDI4060 | KM40 | VDI40 | 1.575 1.89 1.575 2.362 .91 2.48 3.27 | 6mm | 9-12 | KM40PKG3L |
| 2032762 | KM40RCMLVDI50120 | KM40 | VDI50 | 1.575 1.89 1.969 4.724 3.03 3.07 3.86 | 6mm | 9-12 | KM40PKG3L |
| 2013079 | KM40RCMLVDI5060 | KM40 | VDI50 | 1.575 1.89 1.969 2.362 .67 3.07 3.86 | 6mm | 9-12 | KM40PKG3L |
| 2032763 | KM40RCMLVDI6080 | KM40 | VDI60 | 1.575 1.89 2.362 3.150 1.65 3.70 4.84 | 6mm | 9-12 | KM40PKG3L |
| 2032952 | KM50RCMLVDI40120 | KM50 | VDI40 | 1.969 2.36 1.575 4.724 3.43 2.48 3.27 | 10mm | 20-25 | KM50PKG3L |
| 2032951 | KM50RCMLVDI4060 | KM50 | VDI40 | 1.969 2.36 1.575 2.362 1.18 2.48 3.27 | 10mm | 20-25 | KM50PKG3L |
| 2032954 | KM50RCMLVDI50140 | KM50 | VDI50 | 1.969 2.36 1.969 5.512 3.82 3.07 3.86 | 10mm | 20-25 | KM50PKG3L |
| 2032953 | KM50RCMLVDI5070 | KM50 | VDI50 | 1.969 2.36 1.969 2.756 1.26 3.07 3.86 | 10mm | 20-25 | KM50PKG3L |
| 2033100 | KM63RCMLVDI60160 | KM63 | VDI60 | 2.480 2.95 2.362 6.299 4.41 3.70 4.84 | 12mm | 35-40 | KM63PKG3L |
NOTE: Refer to page J40 for torque wrench.
