(R/L • CMI • VDI • Axial continued)

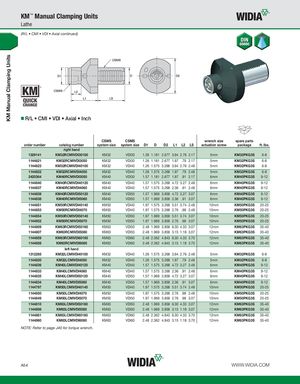

R/L • CMI • VDI • Axial • Inch
| order number | catalog number | CSWS system size | CSMS system size | D1 D D2 L1 L2 LS | wrench size actuation screw | spare parts package | ft. lbs. |
| right hand | |||||||
| 1329141 | KM32RCMIVDI30100 | KM32 | VDI30 | 1.26 1.181 2.677 3.94 2.76 2.17 | 5mm | KM32PKG3S | 6-8 |
| 1144821 | KM32RCMIVDI3050 | KM32 | VDI30 | 1.26 1.181 2.677 1.97 .79 2.17 | 5mm | KM32PKG3S | 6-8 |
| 1144823 | KM32RCMIVDI40100 | KM32 | VDI40 | 1.26 1.575 3.268 3.94 2.76 2.48 | 5mm | KM32PKG3S | 6-8 |
| 1144822 | KM32RCMIVDI4050 | KM32 | VDI40 | 1.26 1.575 3.268 1.97 .79 2.48 | 5mm | KM32PKG3S | 6-8 |
| 2420364 | KM40RCMIVDI3050 | KM40 | VDI30 | 1.57 1.181 2.677 1.97 .91 2.17 | 6mm | KM40PKG3S | 9-12 |
| 1144840 | KM40RCMIVDI40120 | KM40 | VDI40 | 1.57 1.575 3.268 4.72 3.27 2.48 | 6mm | KM40PKG3S | 9-12 |
| 1144837 | KM40RCMIVDI4060 | KM40 | VDI40 | 1.57 1.575 3.268 2.36 .91 2.48 | 6mm | KM40PKG3S | 9-12 |
| 1144839 | KM40RCMIVDI50120 | KM40 | VDI50 | 1.57 1.969 3.858 4.72 3.27 3.07 | 6mm | KM40PKG3S | 9-12 |
| 1144838 | KM40RCMIVDI5060 | KM40 | VDI50 | 1.57 1.969 3.858 2.36 .91 3.07 | 6mm | KM40PKG3S | 9-12 |
| 1144851 | KM50RCMIVDI40140 | KM50 | VDI40 | 1.97 1.575 3.268 5.51 3.74 2.48 | 10mm | KM50PKG3S | 20-25 |
| 1144853 | KM50RCMIVDI4070 | KM50 | VDI40 | 1.97 1.575 3.268 2.76 .98 2.48 | 10mm | KM50PKG3S | 20-25 |
| 1144854 | KM50RCMIVDI50140 | KM50 | VDI50 | 1.97 1.969 3.858 5.51 3.74 3.07 | 10mm | KM50PKG3S | 20-25 |
| 1144852 | KM50RCMIVDI5070 | KM50 | VDI50 | 1.97 1.969 3.858 2.76 .98 3.07 | 10mm | KM50PKG3S | 20-25 |
| 1144809 | KM63RCMIVDI50160 | KM63 | VDI50 | 2.48 1.969 3.858 6.30 4.33 3.07 | 12mm | KM63PKG3S | 35-40 |
| 1144807 | KM63RCMIVDI5080 | KM63 | VDI50 | 2.48 1.969 3.858 3.15 1.18 3.07 | 12mm | KM63PKG3S | 35-40 |
| 1144859 | KM63RCMIVDI60160 | KM63 | VDI60 | 2.48 2.362 4.843 6.30 4.33 3.70 | 12mm | KM63PKG3S | 35-40 |
| 1144858 | KM63RCMIVDI6080 | KM63 | VDI60 | 2.48 2.362 4.843 3.15 1.18 3.70 | 12mm | KM63PKG3S | 35-40 |
| left hand | |||||||
| 1312285 | KM32LCMIVDI40100 | KM32 | VDI40 | 1.26 1.575 3.268 3.94 2.76 2.48 | 5mm | KM32PKG3S | 6-8 |
| 1144820 | KM32LCMIVDI4050 | KM32 | VDI40 | 1.26 1.575 3.268 1.97 .79 2.48 | 5mm | KM32PKG3S | 6-8 |
| 1144836 | KM40LCMIVDI40120 | KM40 | VDI40 | 1.57 1.575 3.268 4.72 3.27 2.48 | 6mm | KM40PKG3S | 9-12 |
| 1144833 | KM40LCMIVDI4060 | KM40 | VDI40 | 1.57 1.575 3.268 2.36 .91 2.48 | 6mm | KM40PKG3S | 9-12 |
| 1144835 | KM40LCMIVDI50120 | KM40 | VDI50 | 1.57 1.969 3.858 4.72 3.27 3.07 | 6mm | KM40PKG3S | 9-12 |
| 1144834 | KM40LCMIVDI5060 | KM40 | VDI50 | 1.57 1.969 3.858 2.36 .91 3.07 | 6mm | KM40PKG3S | 9-12 |
| 1144797 | KM50LCMIVDI40140 | KM50 | VDI40 | 1.97 1.575 3.268 5.51 3.74 2.48 | 10mm | KM50PKG3S | 20-25 |
| 1144850 | KM50LCMIVDI4070 | KM50 | VDI40 | 1.97 1.575 3.268 2.76 .98 2.48 | 10mm | KM50PKG3S | 20-25 |
| 1144849 | KM50LCMIVDI5070 | KM50 | VDI50 | 1.97 1.969 3.858 2.76 .98 3.07 | 10mm | KM50PKG3S | 20-25 |
| 1144810 | KM63LCMIVDI50160 | KM63 | VDI50 | 2.48 1.969 3.858 6.30 4.33 3.07 | 12mm | KM63PKG3S | 35-40 |
| 1144808 | KM63LCMIVDI5080 | KM63 | VDI50 | 2.48 1.969 3.858 3.15 1.18 3.07 | 12mm | KM63PKG3S | 35-40 |
| 1144861 | KM63LCMIVDI60160 | KM63 | VDI60 | 2.48 2.362 4.843 6.30 4.33 3.70 | 12mm | KM63PKG3S | 35-40 |
| 1144860 | KM63LCMIVDI6080 | KM63 | VDI60 | 2.48 2.362 4.843 3.15 1.18 3.70 | 12mm | KM63PKG3S | 35-40 |
NOTE: Refer to page J40 for torque wrench.
