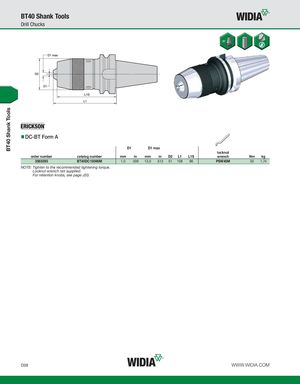

BT40 Shank Tools BT40 Shank Tools Drill Chucks DC-BT Form A D1 D1 max locknut order number catalog number mm in mm in D2 L1 L1S wrench Nm kg 3583293 BT40DC13096M 1,0 .039 13,0 .512 51 108 96 PSW45M 55 1,74 NOTE: Tighten to the recommended tightening torque. Locknut wrench not supplied. For retention knobs, see page J33. D38 WWW.WIDIA.COM
