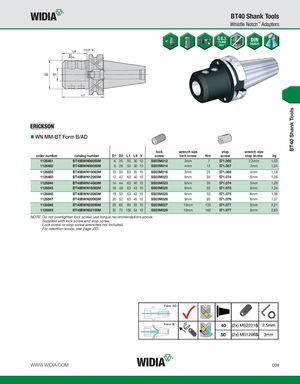

WN MM-BT Form B/AD
| order number | catalog number | D1 D2 | L1 L9 V | lock screw | wrench size lock screw | Nm | stop screw | wrench size stop screw | kg |
| 1126481 | BT40BWN06050M | 6 25 | 50 30 10 | SS03M012 | 3mm | 7 | 571.060 | 2,5mm | 1,03 |
| 1126482 | BT40BWN08050M | 8 28 | 50 30 10 | SS03M014 | 4mm | 15 | 571.067 | 3mm | 1,04 |
| 1126850 | BT40BWN10063M | 10 35 | 63 35 10 | SS03M018 | 5mm | 25 | 571.068 | 4mm | 1,18 |
| 1126483 | BT40BWN12063M | 12 42 | 63 40 10 | SS03M023 | 6mm | 35 | 571.074 | 5mm | 1,26 |
| 1126844 | BT40BWN14063M | 14 44 | 63 40 10 | SS03M023 | 6mm | 35 | 571.074 | 5mm | 1,28 |
| 1126845 | BT40BWN16063M | 16 48 | 63 43 10 | SS03M025 | 6mm | 50 | 571.075 | 6mm | 1,34 |
| 1126846 | BT40BWN18063M | 18 50 | 63 43 10 | SS03M025 | 6mm | 50 | 571.075 | 6mm | 1,36 |
| 1126847 | BT40BWN20063M | 20 52 | 63 45 10 | SS03M026 | 8mm | 95 | 571.076 | 6mm | 1,37 |
| 1126848 | BT40BWN25090M | 25 65 | 90 55 10 | SS03M027 | 10mm | 135 | 571.077 | 6mm | 2,21 |
| 1126849 | BT40BWN32100M | 32 72 | 100 54 10 | SS03M029 | 10mm | 160 | 571.077 | 6mm | 2,63 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw or stop screw wrenches not included. For retention knobs, see page J33.
