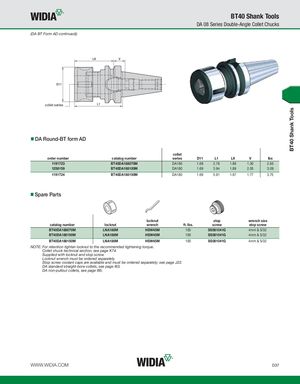

BT40 Shank Tools BT40 Shank Tools DA 08 Series Double-Angle Collet Chucks (DA BT Form AD continued)) collet series DA Round-BT form AD collet order number catalog number series D11 L1 L9 V lbs 1191723 BT40DA188070M DA180 1.69 2.76 1.89 1.30 2.65 1258159 BT40DA188100M DA180 1.69 3.94 1.89 2.05 3.09 1191724 BT40DA188150M DA180 1.69 5.91 1.97 1.77 3.75 Spare Parts locknut stop wrench size catalog number locknut wrench ft. lbs. screw stop screw BT40DA188070M LNA188M HSW45M 100 SS081041G 4mm & 5/32 BT40DA188100M LNA188M HSW45M 100 SS081041G 4mm & 5/32 BT40DA188150M LNA188M HSW45M 100 SS081041G 4mm & 5/32 NOTE: For retention tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I63. DA non-pullout collets, see page I65. WWW.WIDIA.COM D37
