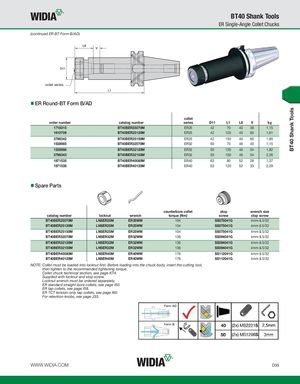

BT40 Shank Tools BT40 Shank Tools ER Single-Angle Collet Chucks (continued ER BT Form B/AD) collet series ER Round-BT Form B/AD collet order number catalog number series D11 L1 L9 V kg 1718315 BT40BER25070M ER25 42 70 40 38 1,15 1610709 BT40BER25120M ER25 42 120 40 60 1,61 3798342 BT40BER25150M ER25 42 150 40 60 1,90 1538985 BT40BER32070M ER32 50 70 46 40 1,15 1538986 BT40BER32120M ER32 50 120 46 54 1,82 3798343 BT40BER32150M ER32 50 150 46 54 2,26 1871535 BT40BER40080M ER40 63 80 52 28 1,37 1871538 BT40BER40120M ER40 63 120 52 33 2,29 Spare Parts counterbore collet stop wrench size catalog number locknut wrench torque (Nm) screw stop screw BT40BER25070M LNSER25M ER25WM 104 SS075041G 4mm & 5/32 BT40BER25120M LNSER25M ER25WM 104 SS075041G 4mm & 5/32 BT40BER25150M LNSER25M ER25WM 104 SS075041G 4mm & 5/32 BT40BER32070M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 BT40BER32120M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 BT40BER32150M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 BT40BER40080M LNSER40M ER40WM 176 SS112041G 4mm & 5/32 BT40BER40120M LNSER40M ER40WM 176 SS112041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. For retention knobs, see page J33. WWW.WIDIA.COM D35
