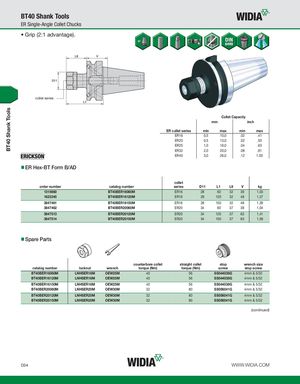

- Grip (2:1 advantage).
collet series
| m | m | Collet C | apacity in | ch | |
| ER collet series | min | max | min | max | |
| ER16 | 0,5 | 10,0 | .02 | .41 | |
| ER20 | 0,5 | 13,0 | .02 | .50 | |
| ER25 | 1,0 | 16,0 | .04 | .63 | |
| ER32 | 2,0 | 20,0 | .08 | .81 | |
| ER40 | 3,0 | 26,0 | .12 | 1.00 |
ER Hex-BT Form B/AD
| order number | catalog number | collet series | D11 | L1 | L9 | V | kg |
| 1315660 | BT40BER16060M | ER16 | 28 | 60 | 32 | 39 | 1,03 |
| 1623345 | BT40BER16120M | ER16 | 28 | 120 | 32 | 48 | 1,27 |
| 3847461 | BT40BER16150M | ER16 | 28 | 150 | 32 | 48 | 1,39 |
| 3847462 | BT40BER20060M | ER20 | 34 | 60 | 37 | 38 | 1,04 |
| 3847513 | BT40BER20120M | ER20 | 34 | 120 | 37 | 63 | 1,41 |
| 3847514 | BT40BER20150M | ER20 | 34 | 150 | 37 | 63 | 1,59 |
Spare Parts
| catalog number | locknut | wrench | counterbore collet torque (Nm) | straight collet torque (Nm) | stop screw | wrench size stop screw |
| BT40BER16060M | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 |
| BT40BER16120M | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 |
| BT40BER16150M | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 |
| BT40BER20060M | LNHSER20M | OEW30M | 32 | 80 | SS056041G | 4mm & 5/32 |
| BT40BER20120M | LNHSER20M | OEW30M | 32 | 80 | SS056041G | 4mm & 5/32 |
| BT40BER20150M | LNHSER20M | OEW30M | 32 | 80 | SS056041G | 4mm & 5/32 |
(continued)
