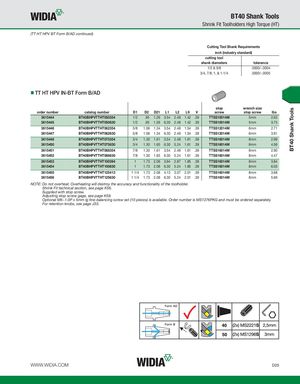

(TT HT HPV BT Form B/AD continued)
| Cutting Tool Shank | Requirements | ||||||||||
| inch (industry s | tandard) | ||||||||||
| sh | cutting tool ank diameters | toleran | ce | ||||||||
| 3/ | 1/2 & 5/8 4, 7/8, 1, & 1-1/4 | .0000/-.0 .0000/-.0 | 004 005 | ||||||||
| order number T HT HPV IN- | catalog number BT Form B/AD | D1 | D2 | D21 | L1 | L2 | L9 | V | stop screw | wrench size stop screw | lbs |
| 3615444 | BT40BHPVTTHT050354 | 1/2 | .95 | 1.26 | 3.54 | 2.48 | 1.42 | .39 | TTSS10014M | 5mm | 2.63 |
| 3615445 | BT40BHPVTTHT050630 | 1/2 | .95 | 1.26 | 6.30 | 2.48 | 1.42 | .39 | TTSS10014M | 5mm | 3.73 |
| 3615446 | BT40BHPVTTHT062354 | 5/8 | 1.06 | 1.34 | 3.54 | 2.48 | 1.54 | .39 | TTSS12014M | 6mm | 2.71 |
| 3615447 | BT40BHPVTTHT062630 | 5/8 | 1.06 | 1.34 | 6.30 | 2.48 | 1.54 | .39 | TTSS12014M | 6mm | 3.91 |
| 3615448 | BT40BHPVTTHT075354 | 3/4 | 1.30 | 1.61 | 3.54 | 2.48 | 1.61 | .39 | TTSS16014M | 8mm | 2.99 |
| 3615450 | BT40BHPVTTHT075630 | 3/4 | 1.30 | 1.65 | 6.30 | 5.24 | 1.61 | .39 | TTSS16014M | 8mm | 4.56 |
| 3615451 | BT40BHPVTTHT088354 | 7/8 | 1.30 | 1.61 | 3.54 | 2.48 | 1.61 | .39 | TTSS16014M | 8mm | 2.90 |
| 3615452 | BT40BHPVTTHT088630 | 7/8 | 1.30 | 1.65 | 6.30 | 5.24 | 1.61 | .39 | TTSS16014M | 8mm | 4.47 |
| 3615453 | BT40BHPVTTHT100394 | 1 | 1.73 | 2.06 | 3.94 | 2.87 | 1.85 | .39 | TTSS16014M | 8mm | 3.84 |
| 3615454 | BT40BHPVTTHT100630 | 1 | 1.73 | 2.08 | 6.30 | 5.24 | 1.85 | .39 | TTSS16014M | 8mm | 6.03 |
| 3615455 | BT40BHPVTTHT125413 | 1 1/4 | 1.73 | 2.08 | 4.13 | 3.07 | 2.01 | .39 | TTSS16014M | 8mm | 3.68 |
| 3615456 | BT40BHPVTTHT125630 | 1 1/4 | 1.73 | 2.08 | 6.30 | 5.24 | 2.01 | .39 | TTSS16014M | 8mm | 5.69 |
NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Optional M6~1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. For retention knobs, see page J33.
