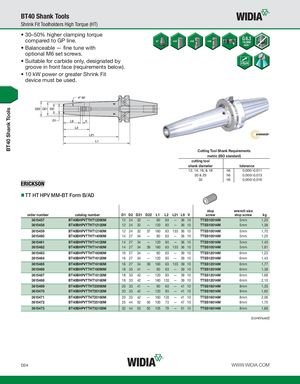

BT40 Shank Tools BT40 Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-BT Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3615457 BT40BHPVTTHT12090M 12 24 32 — 90 63 — 36 10 TTSS10014M 5mm 1,20 3615458 BT40BHPVTTHT12120M 12 24 32 — 120 93 — 36 10 TTSS10014M 5mm 1,38 3615459 BT40BHPVTTHT12160M 12 24 32 37 160 63 133 36 10 TTSS10014M 5mm 1,70 3615460 BT40BHPVTTHT14090M 14 27 34 — 90 63 — 36 10 TTSS10014M 5mm 1,25 3615461 BT40BHPVTTHT14120M 14 27 34 — 120 93 — 36 10 TTSS10014M 5mm 1,45 3615462 BT40BHPVTTHT14160M 14 27 34 39 160 63 133 36 10 TTSS10014M 5mm 1,81 3615463 BT40BHPVTTHT16090M 16 27 34 — 90 63 — 39 10 TTSS12014M 6mm 1,23 3615464 BT40BHPVTTHT16120M 16 27 34 — 120 93 — 39 10 TTSS12014M 6mm 1,43 3615465 BT40BHPVTTHT16160M 16 27 34 39 160 63 133 39 10 TTSS12014M 6mm 1,77 3615466 BT40BHPVTTHT18090M 18 33 41 — 90 63 — 39 10 TTSS12014M 6mm 1,38 3615467 BT40BHPVTTHT18120M 18 33 42 — 120 93 — 39 10 TTSS12014M 6mm 1,69 3615468 BT40BHPVTTHT18160M 18 33 42 — 160 133 — 39 10 TTSS12014M 6mm 2,10 3615469 BT40BHPVTTHT20090M 20 33 41 — 90 63 — 41 10 TTSS16014M 8mm 1,35 3615470 BT40BHPVTTHT20120M 20 33 42 — 120 93 — 41 10 TTSS16014M 8mm 1,65 3615471 BT40BHPVTTHT20160M 20 33 42 — 160 133 — 41 10 TTSS16014M 8mm 2,06 3615472 BT40BHPVTTHT25100M 25 44 52 50 100 73 — 47 10 TTSS16014M 8mm 1,75 3615473 BT40BHPVTTHT32105M 32 44 53 50 105 78 — 51 10 TTSS16014M 8mm 1,66 (continued) D24 WWW.WIDIA.COM
